Extend Oil Life • Protect Your Machinery

HE-MF-40

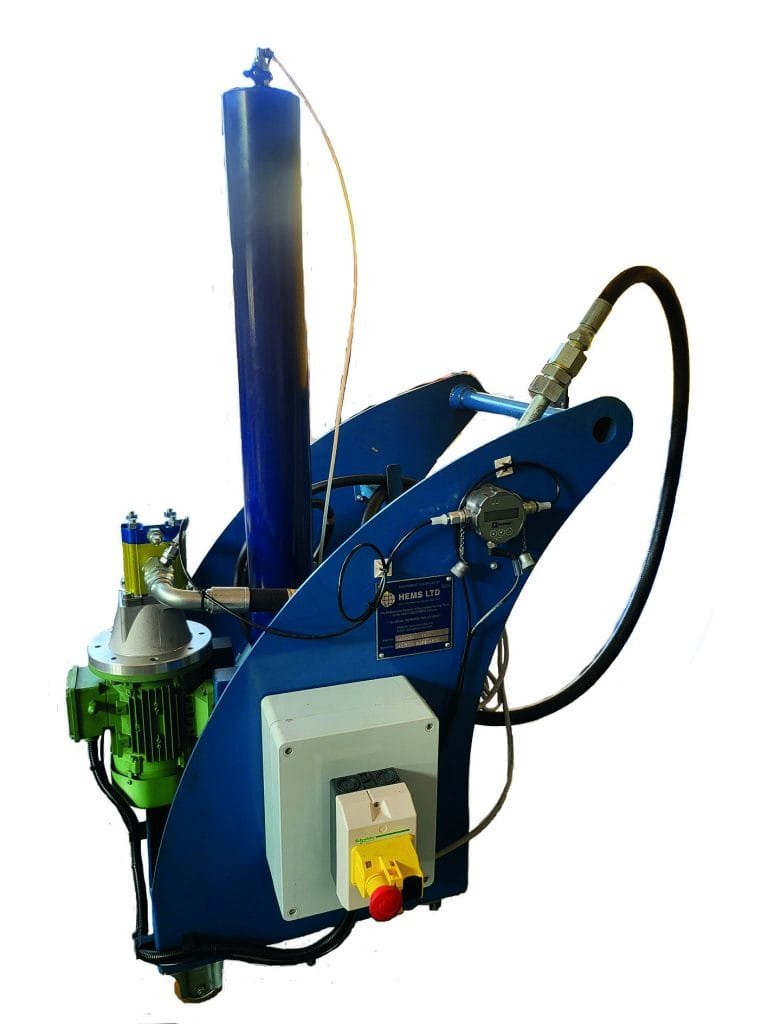

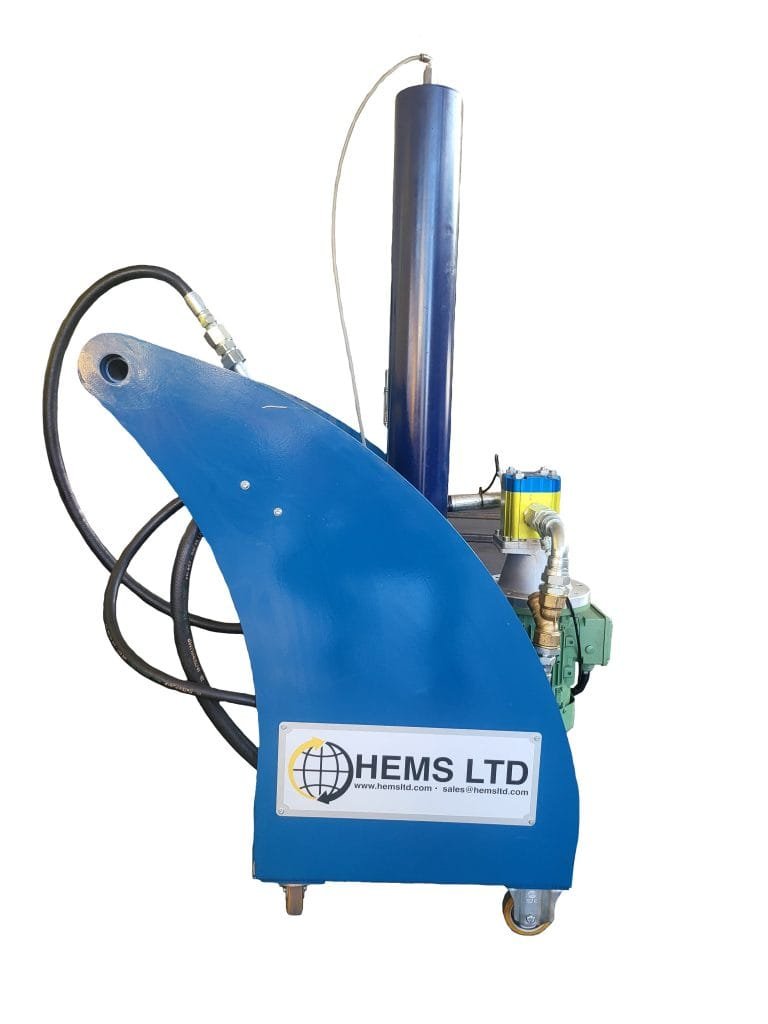

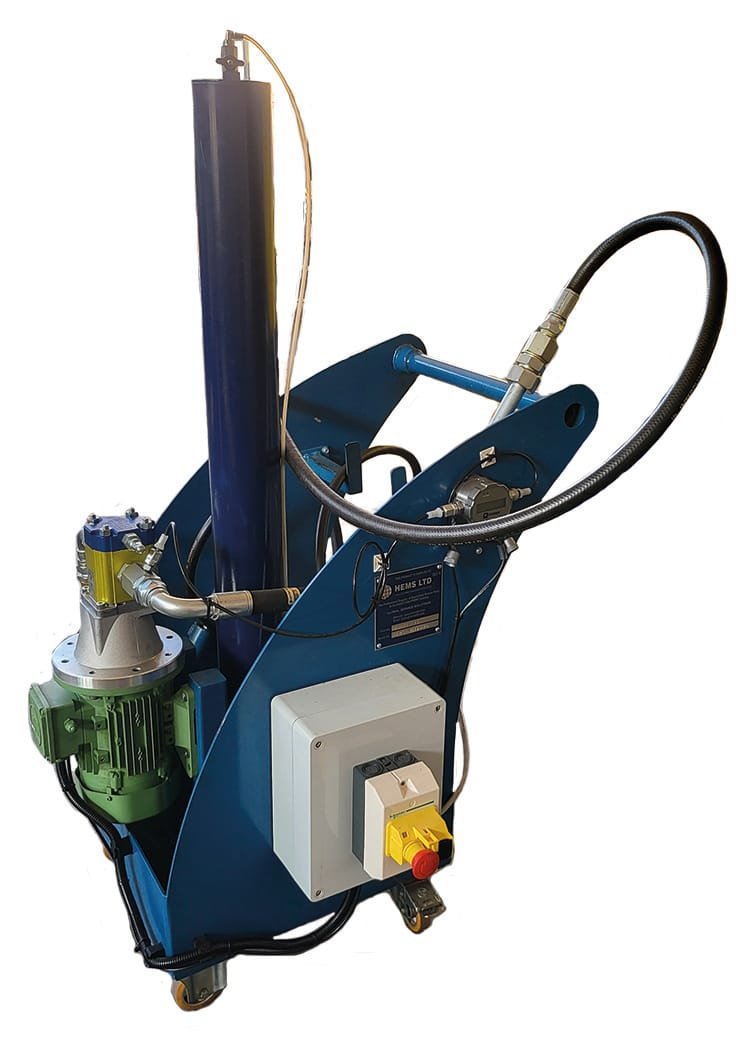

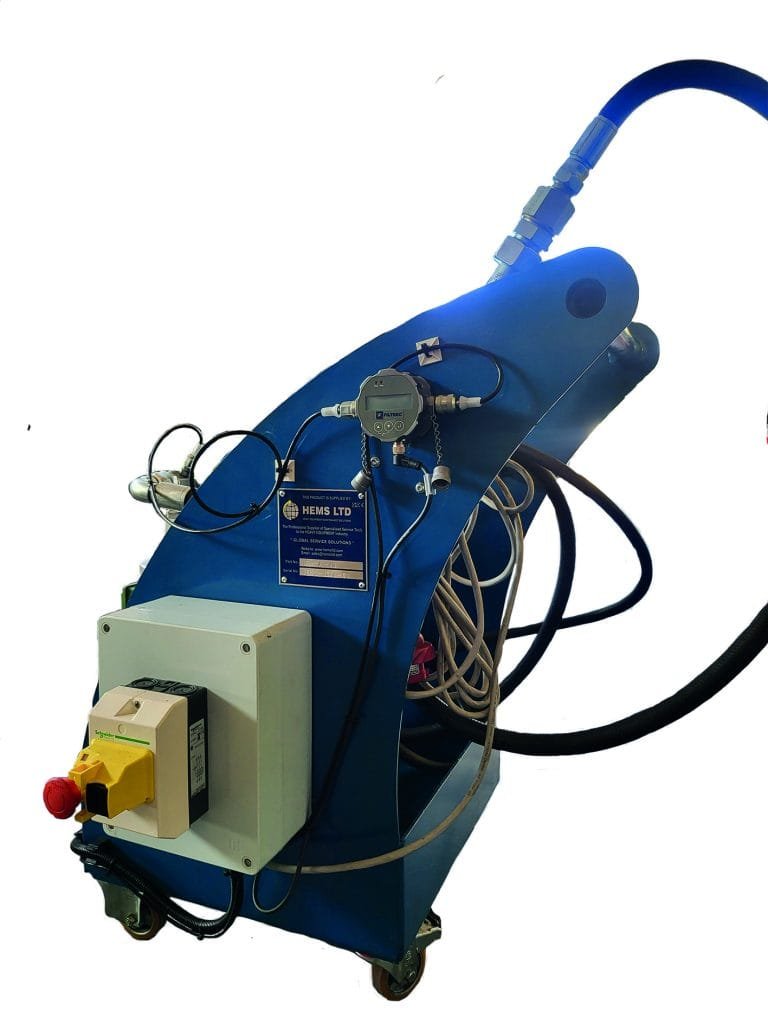

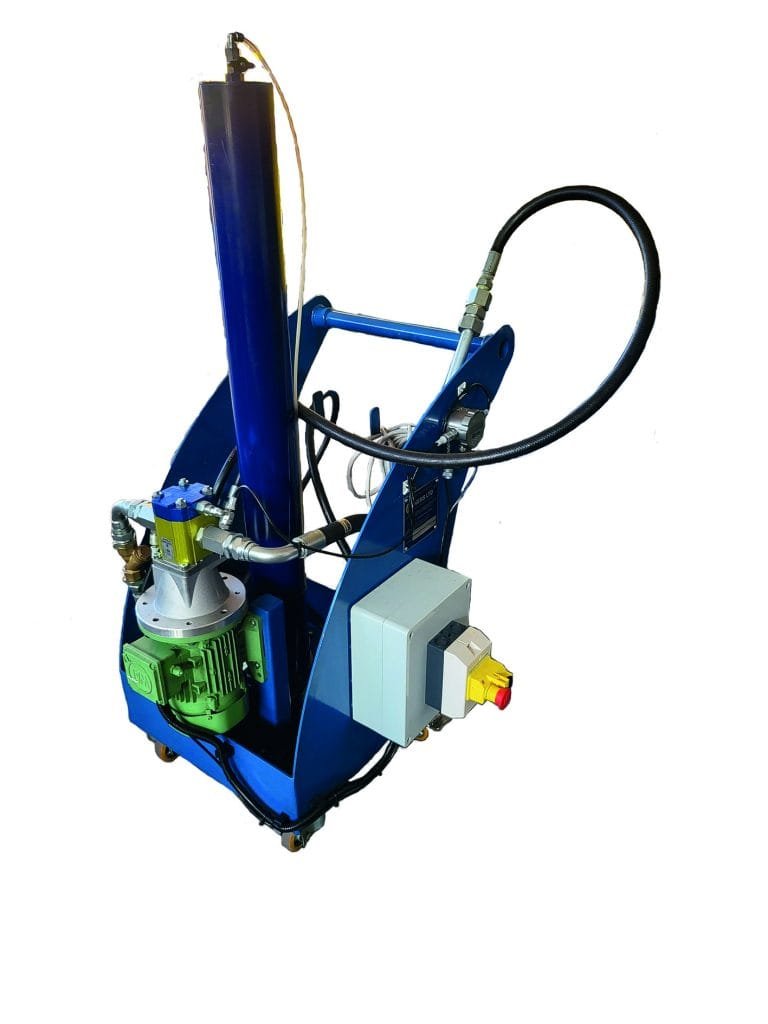

Mobile Filtration Unit on wheels, with a high accumulation power filtering unit. Complete with electric pump with 40Lt/min flow rate and filter to protect the pump. Our package includes an oil contamination reader, along with a 24V power supply and accessories.

Oil Filteration Units
Oil Filteration Units
Oil Filteration Units
Oil Filteration Units
Oil Filteration Units

Specifications

OVERALL DIMENSIONS
Height 1430mm
Width 785mm
Depth 830mm
WEIGHTS
Overall Weight 150kg
ELECTRICAL SYSTEM FEATURES
Max. Power Consumption 1.1 Kw
Tension 380 V Trifase
Hz 50 Hz
ELECTRIC MOTORIZATION
Motor Circuit Three-Phase asynchronous 1.1 Kw
HYDRAULIC SYSTEM
Permitted Fluids Hydraulic oils according to DIN 51524
Maximum Fluid Temperature 65 degrees
Test Circuit Max Flow Rate: 40 lt/min, Max Pressure: 10 bar

Key Features

  • Superfine filtration of contaminant particles by absolute media filters of high dirt holding capacity
  • Contaminant cleanliness level NAS 4-5 cleanliness class achievable
  • High beta ratio - 1000 beta for filters: filtration efficiency 99.998%
  • MCB for each equipment for higher safety
  • Efficient vacuum unit for dehydration and ability to remove moisture that is free, emulsified, and dissolved.
