Cylinder HoningStation

Model: F-CRTH-65

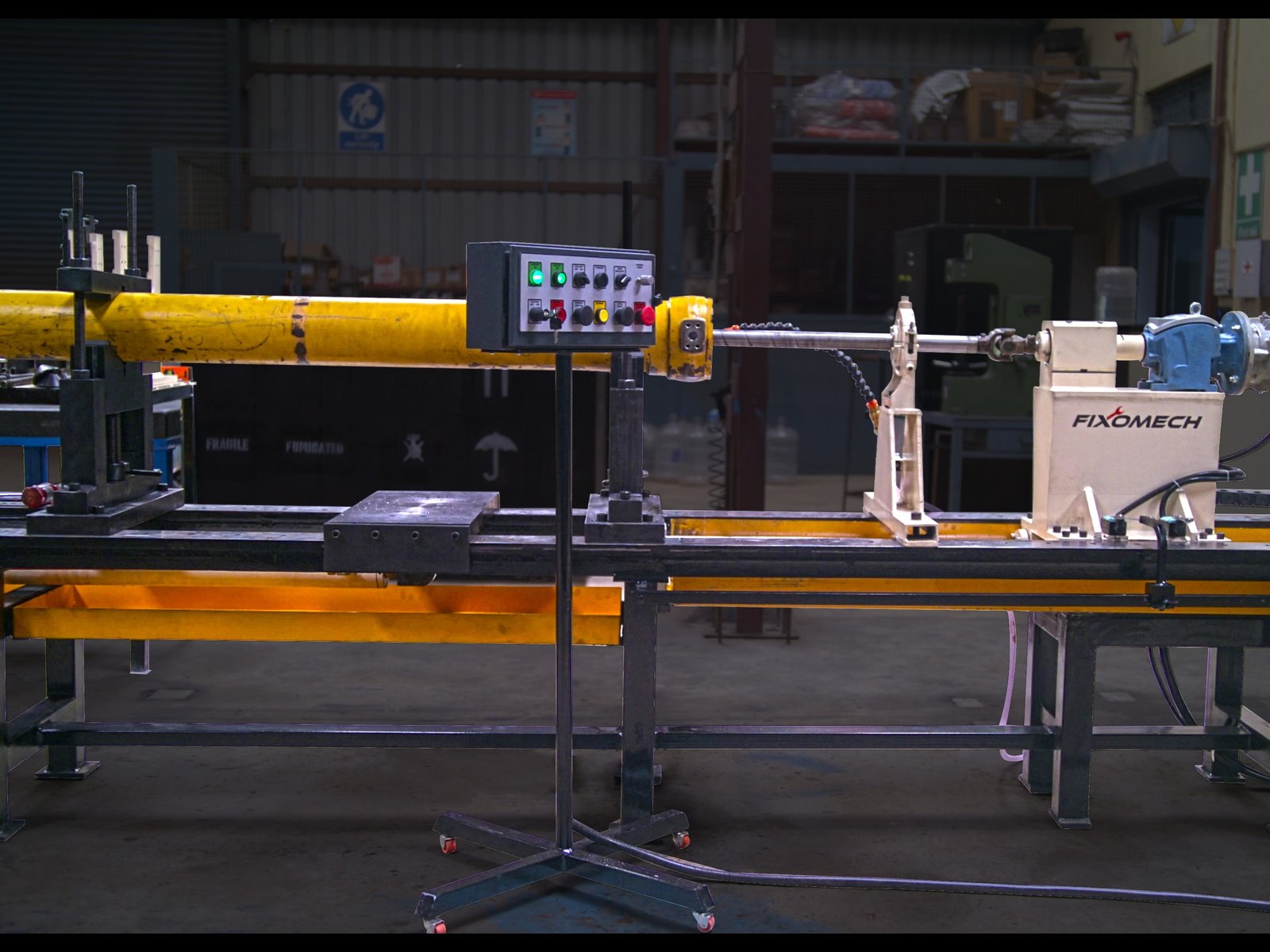

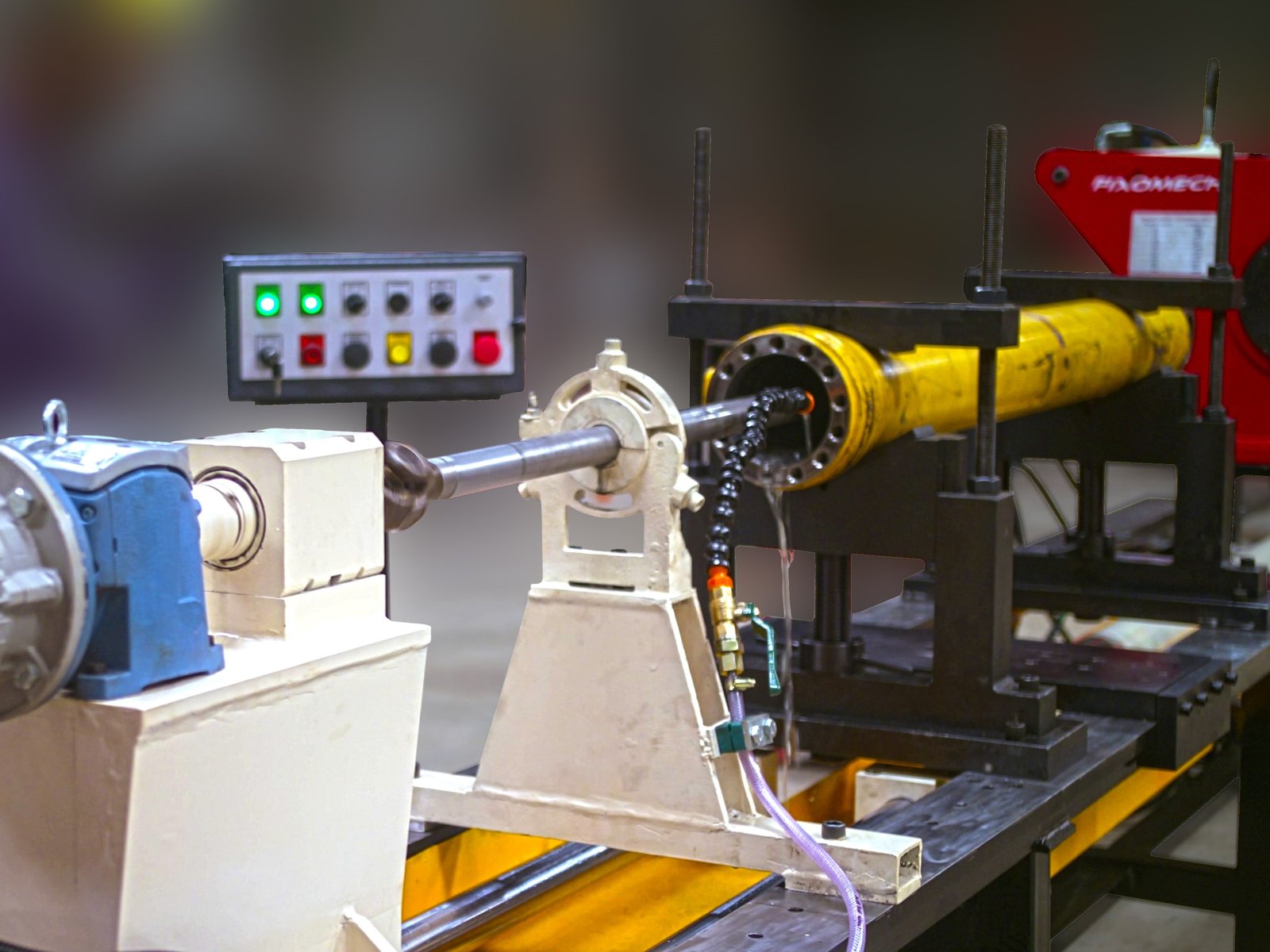

Fixomech Cylinder Honing Station is the leading machine for hydraulic shops, enabling technicians to perform cylinder disassembly, repair, assembly, and testing up to 250 bar. It also features cylinder honing capabilities, making it a comprehensive solution for hydraulic cylinder maintenance.

Track Winder

Why Choose Our Cylinder Honing Station?

Engineered for professionals who demand reliability, efficiency, and precision in their heavy machinery maintenance operations.

Precision Engineering

Designed with precision components for accurate track pin removal and installation, ensuring optimal performance every time.

Built to Last

Constructed with high-grade materials and robust engineering to withstand the demands of heavy-duty industrial applications.

Efficient Operation

Streamlined design reduces operation time and effort, making field service and shop repairs faster and more efficient.

Overview

Product name NUTBUSTER - FHNB-65 NUTBUSTER - FHNB-80
Nut Buster Torque 65,000 Nm / 47,940 ft lb 80,000 Nm / 59,000 ft lb
Hydraulic Motor Torque 600 Nm / 440 ft lb 600 Nm / 440 ft lb
Table Size (Customised) 4 mtr to 10 Mtr 5 mtr to 12 Mtr
Max Cylinder OD 500mm 600mm
Extraction Cylinder Stroke 2000mm 2000mm
Hydraulic Pressure (Max) 300 bar 300 bar
Electric Motor 3HP, All Voltage (50/60 Hz) 5HP, 3 Phase (50/60 Hz)
Pump Flow 4.3 lpm 6.8 lpm
Oil Tank Capacity 40 Lts 60 Lts
Honing Attachment Specification
Honing Length (Customised) 2 Mtr to 4 Mtr 2 Mtr to 5 Mtr
Honing Diameter 100 to 500mm 100 to 600mm
Honing Head Motor HP 2HP 2HP
Working Pressure 50 bar 50 bar
Flow 25 lpm 25 lpm
Hydraulic Pump Motor 5HP 5HP
Oil Tank Cap 100 Ltrs 100 Ltrs
Coolant Tank Electric Motor 0.5 HP 0.5 HP
Coolant Tank Cap 20 Ltrs 20 Ltrs
icon

Product Description

Cylinder Honing Station
Cylinder Honing Station
Cylinder Honing Station

Product Description:

Cylinder Honing Station

Fixomech is the leading company in launching the most comprehensive machine suitable for all hydraulic shops. Technicians can now all many operations on the hydraulic cylinders as listed below:

  • Cylinder disassembly, Repair and Assembly
  • Cylinder testing up to 250bar after the repair operation
  • Cylinder honing

    • F-CRTH cylinder repair station capabilities The FIXOMECH Nut Buster’s head is meticulously engineered to repair cylinders across a wide range of capacities. It delivers precision and efficiency, ensuring that the cylinders are restored to their optimal condition. Refer to the chart below to see the full range of cylinder sizes and types that this powerful machine can handle.

    You can rest assured that they have been rigorously tested to not only meet, but to exceed worldwide safety standards including the European Conformity (CE) standard.
