Track Press

Home / Products / Undercarriage Repair / Track Press
bg
icon

Under Carriage Repair

Heavy Machinery Equipment

Track Press

Models: HEM-UC/200T, HEM-UC/300T, HEM-UC/400T, HEM-UC/500T

The stationary track press has been rigorously tested for performance and reliability in our production facilities, ensuring it can withstand high volumes and continuous workloads with ease.

With the launch of its new stationary track press, HEMS expands its reputable line of machinery and equipment for tracked vehicle maintenance. The three HEMS models facilitate safe and efficient assembly and disassembly of chains with pitches up to 325mm.

Track Press
Track Press
Track Press
Track Press

Why Choose Our Track Press?

Engineered for professionals who demand reliability, efficiency, and precision in their heavy machinery maintenance operations.

Precision Engineering

Designed with precision components for accurate track pin removal and installation, ensuring optimal performance every time.

Built to Last

Constructed with high-grade materials and robust engineering to withstand the demands of heavy-duty industrial applications.

Efficient Operation

Streamlined design reduces operation time and effort, making field service and shop repairs faster and more efficient.

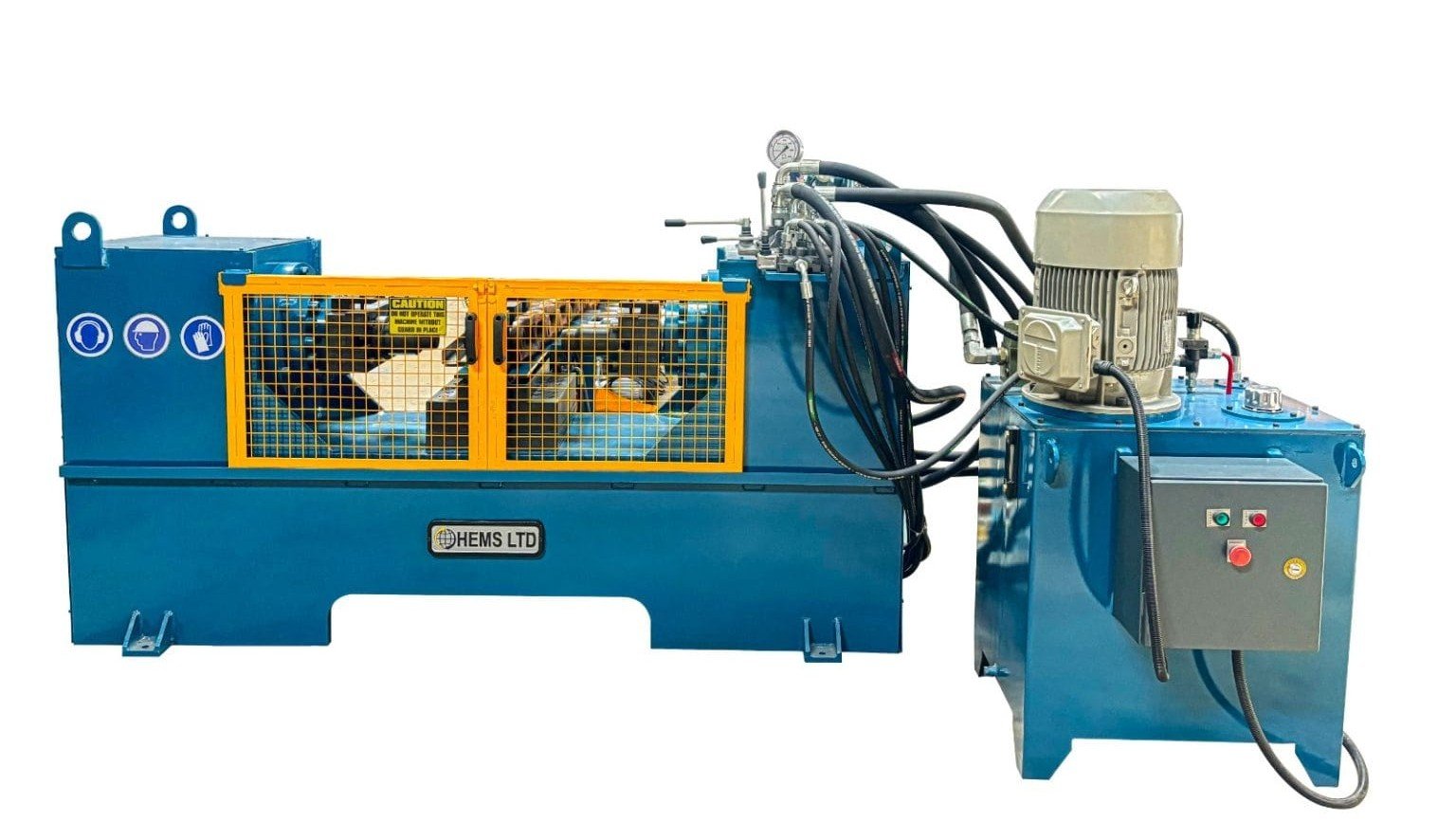

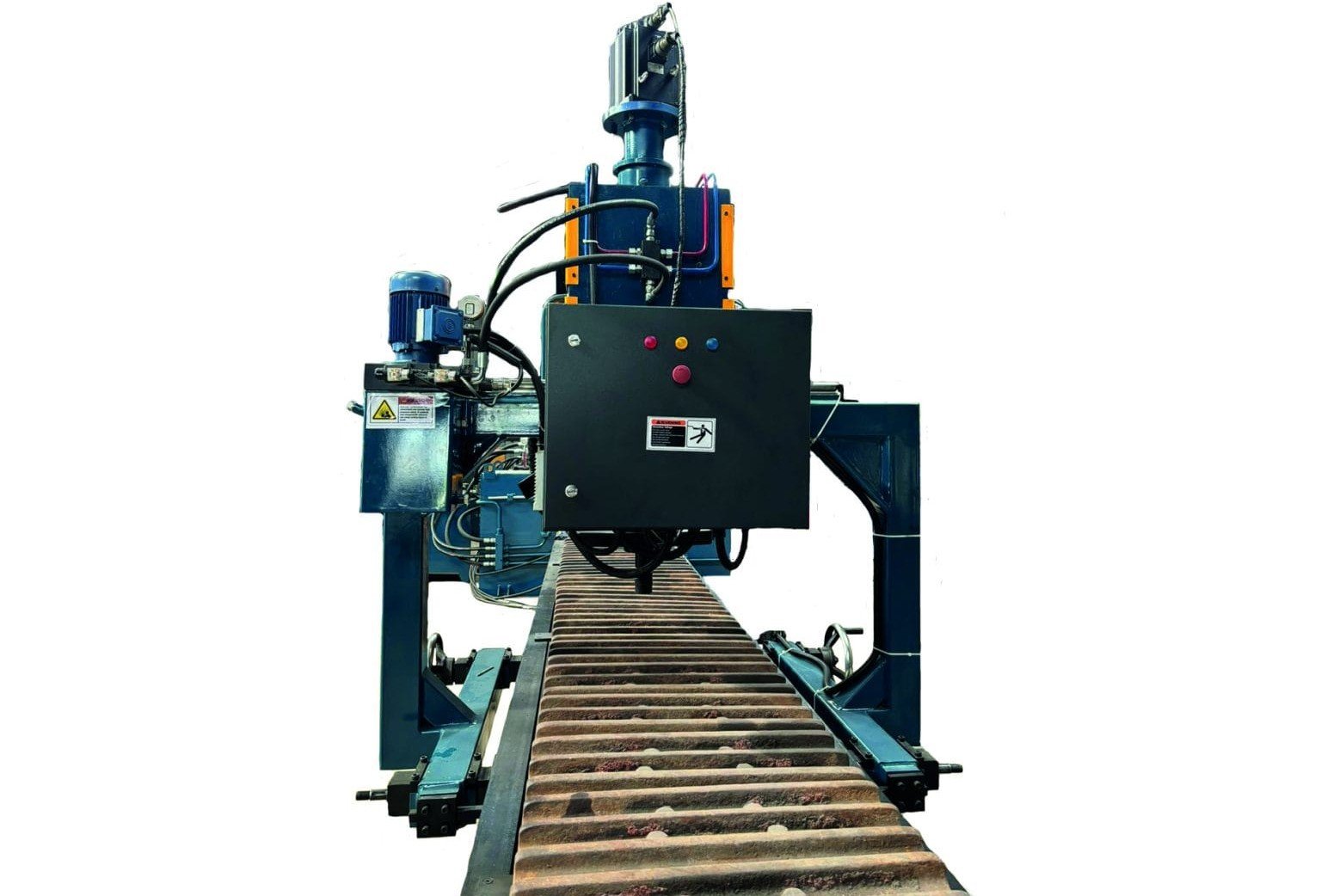

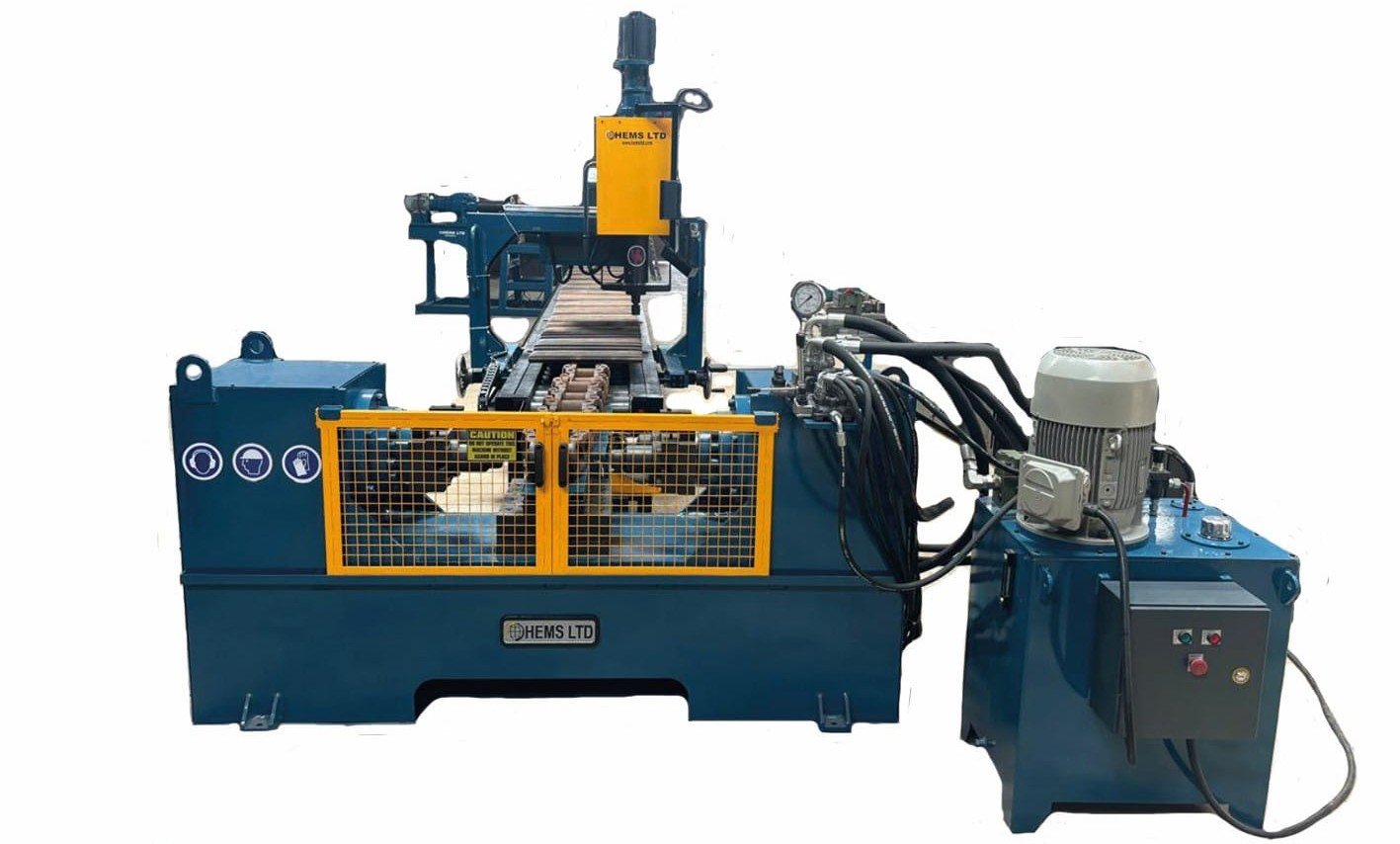

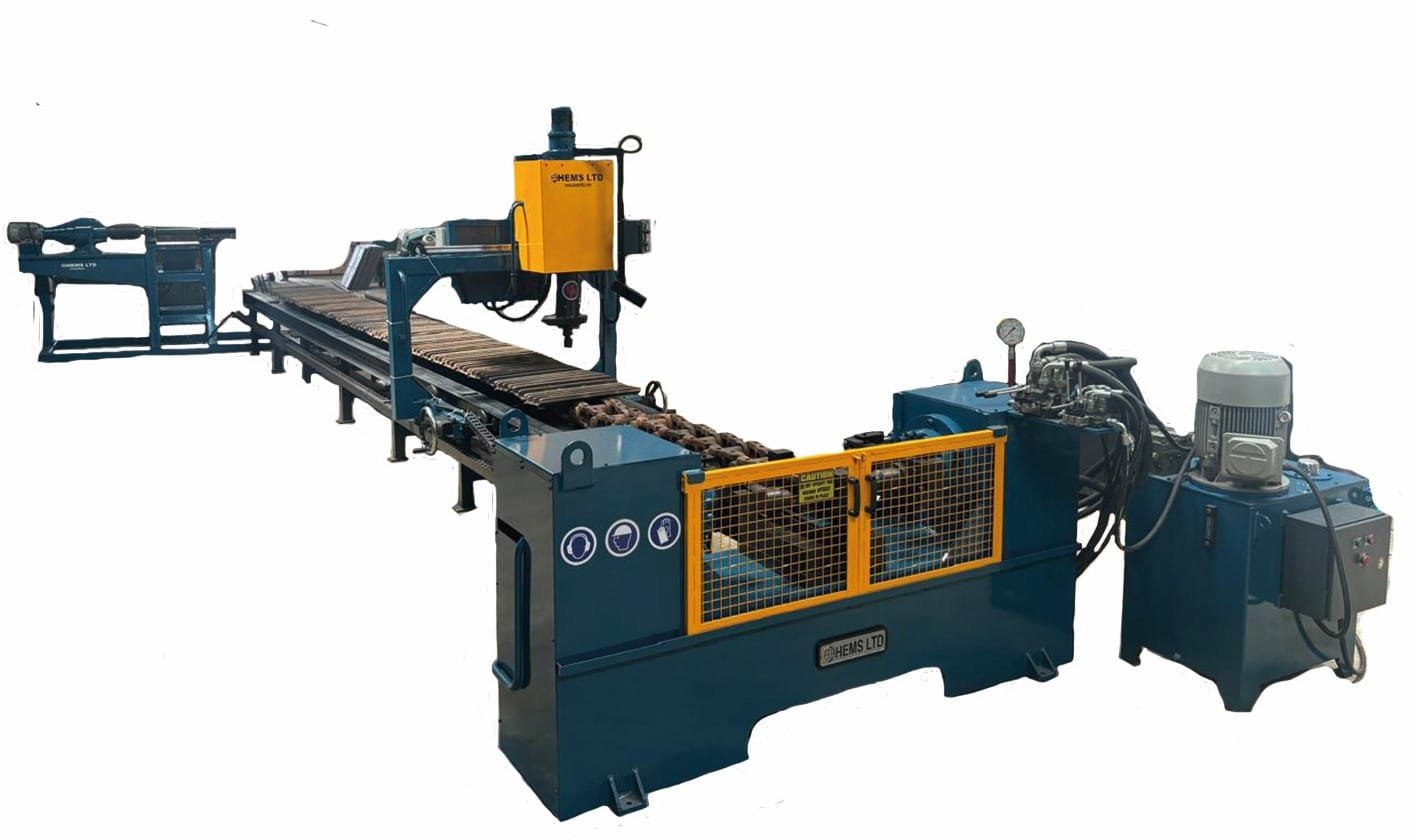

Stationary Track Press

Description HEM-UC/200T HEM-UC/300T HEM-UC/400T HEM-UC/500T
Capacity of Cylinders 100 Ton 150 Ton 200 Ton 250 Ton
Bore 180mm 220mm 260mm 290mm
Ram 140mm 180mm 220mm 240mm
Press Daylight 800mm 800mm 900mm 900mm
Max Track Pitch 270mm 280mm 300mm 325mm
Effective Area 254.46 cm/sq 380.13 cm/sq 530.93 cm/sq 660.52 cm/sq
Working Pressure 400 bar 400 bar 380 bar 380 bar
Stroke 150mm 150mm 150mm 150mm
Forward Speed 27.22 mm/sec 21.69 mm/sec 20.17 mm/sec 16.21 mm/sec
Pressing Speed 6.94 mm/sec 6.53 mm/sec 5.93 mm/sec 4.77 mm/sec
Voltage 380-440 V 380-440 V 380-440 V 380-440 V

Product Information

Watch our video to learn more about our track press.

  • Detailed technical specifications
  • Complete design process
  • Future development insights
  • Installation and maintenance guides
