Smaller Tracks

Home / Products / Master Pin Pusher / Smaller Tracks
bg
icon

Master Pin Pusher

Heavy Machinery Equipment

Smaller Tracks

Model: [ HEPP-30/50 ]

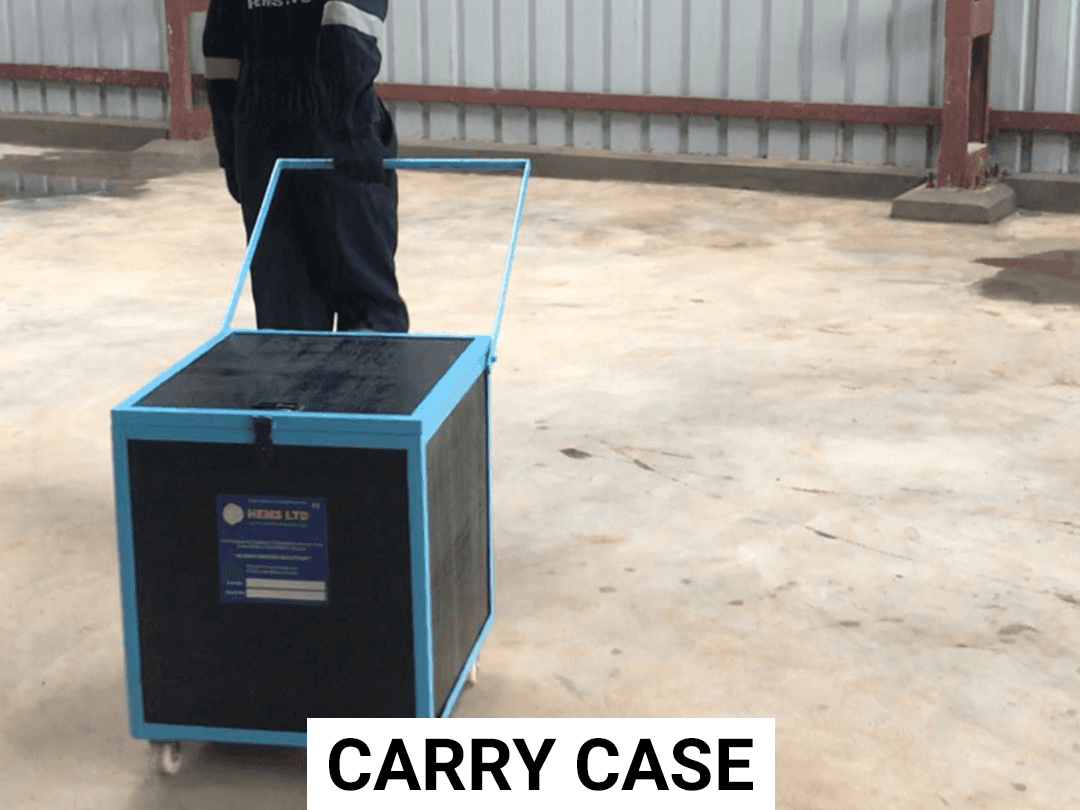

Pioneer Mac newest and most innovative Master Pin Pusher, the 30ton Press, is of uniquely compact and lightweight design. This press includes 3 sets of tooling to cover from 19.3mm to 36.2mm pin diameter. Weighing less than 30kgs and fitting in a compact carrying case, this Master Pin Pusher is ideal for one man operation and mobile plant environments!

Master Pin Pusher for Smaller Tracks

Why Choose Our Master Pin Pusher for Smaller Tracks?

Engineered for professionals who demand reliability, efficiency, and precision in their heavy machinery maintenance operations.

Precision Engineering

Designed with precision components for accurate track pin removal and installation, ensuring optimal performance every time.

Built to Last

Constructed with high-grade materials and robust engineering to withstand the demands of heavy-duty industrial applications.

Efficient Operation

Streamlined design reduces operation time and effort, making field service and shop repairs faster and more efficient.

Specifications

Model Capacity (Ton) Stroke (mm) Working Pressure (kg/cm²) Approx Weight (Kg) Operation Universal Tooling Set (Included in Package) PIN DETAILS
Min. dia (mm) Max. dia (mm) Min. Length (mm) Max. Length (mm)
HEPP-30 M 30 200 700 28.5 Hand pump 5 Sets to cover 18mm up to 36.2mm in diameter 18 36.2 90 170

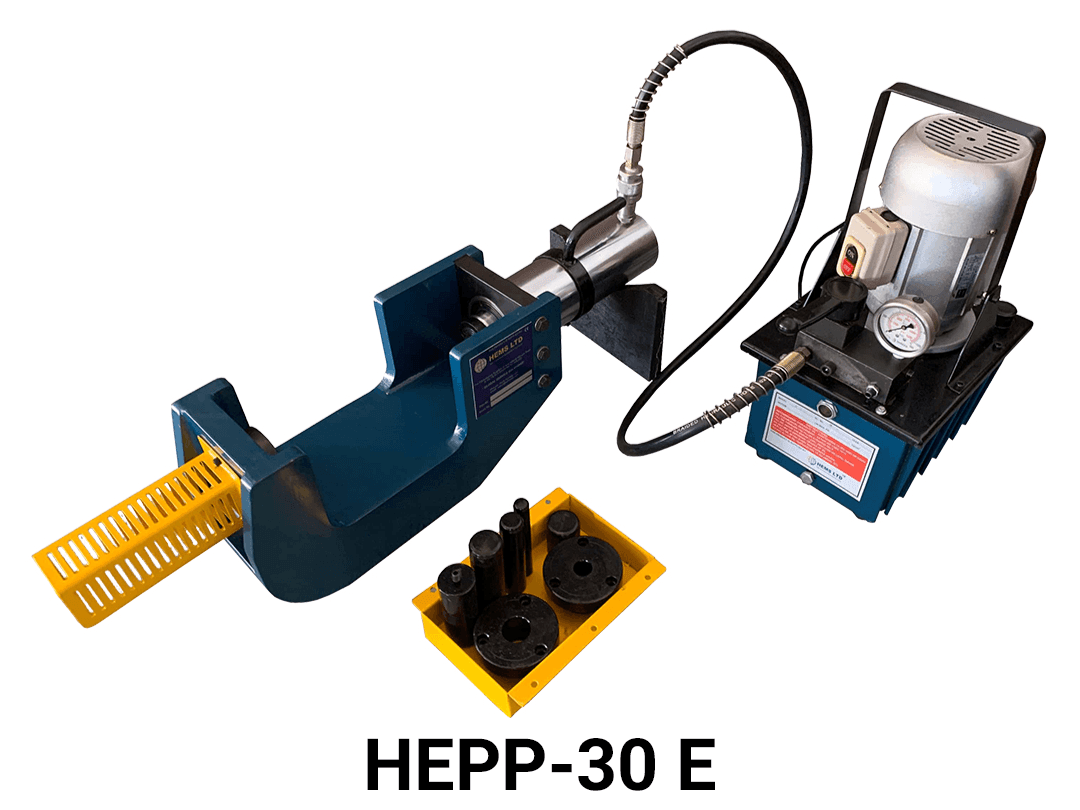

HEPP-30 E 30 200 700 28.5 Electric pump 5 Sets to cover 18mm up to 36.2mm in diameter 18 36.2 90 170

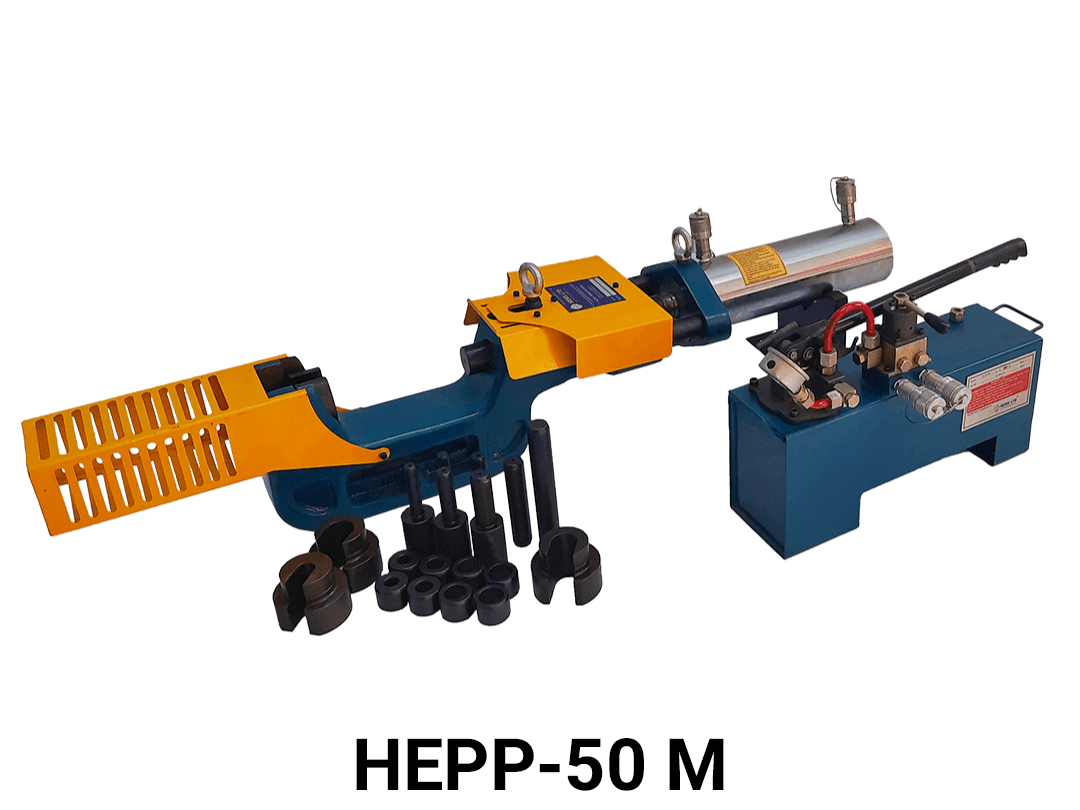

HEPP-50 M 50 250 700 85 Hand pump 4 Sets to cover 19.3mm up to 36.3mm in diameter 19.3 36.3 133 178
HEPP-50 E 50 250 700 85 Electric pump (dual control pump 2 in 1) 4 Sets to cover 19.3mm up to 36.3mm in diameter 19.3 36.3 133 178
icon

Product Description

Master Pin Pusher for Smaller Tracks
Master Pin Pusher for Smaller Tracks
Master Pin Pusher for Smaller Tracks
Master Pin Pusher for Smaller Tracks

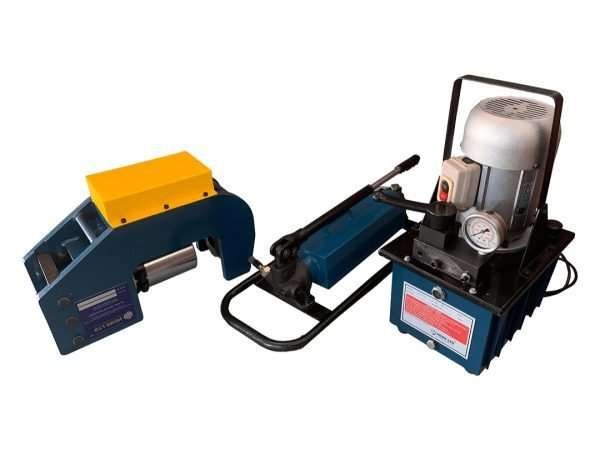

Smaller Tracks [ HEPP-30 ]

Pioneer Mac newest and most innovative Master Pin Pusher, the 30ton Press, is of uniquely compact and lightweight design. This press includes 3 sets of tooling to cover from 19.3mm to 36.2mm pin diameter. Weighing less than 30kgs and fitting in a compact carrying case, this Master Pin Pusher is ideal for one man operation and mobile plant environments!

A few examples of OEM applications for our 30ton Press:
CAT D5/ 955 / E120
KOMATSU D31/PC138
VOLVO CE E210
JOHN DEERE 690
HITACHI EX120

For more information and pricing please contact info@promacpioneer.com

Smaller Tracks [ HEPP-50 ]

Pioneer Mac 50ton Press is similar to the 30ton model, but with higher capacity. We would recommend this press for weathered tracks and pins. This model includes pin set and adaptor tooling to cover from 19.3 mm up to 36.2 mm in diameter and many more additional items.

A few examples of OEM applications for our 50ton Press:
CAT D5C / 955 / TR225 / D4D
VOLVO EC145
JOHN DEERE 450G / 690 / EX120-2 / 550G
KOMATSU D30 / D50 / PC100 / PC120 / PC80
HITACHI EX90 / EX100 / EX120

Master Pin Pusher for Smaller Tracks
Master Pin Pusher for Smaller Tracks
Master Pin Pusher for Smaller Tracks

Product Information

Download our comprehensive brochure for detailed technical specifications, design process insights, and future development roadmap for the Master Pin Pusher for Smaller Tracks.

  • Detailed technical specifications
  • Complete design process documentation
  • Future development insights
  • Installation and maintenance guides

Get Complete Product Details

Access our comprehensive product brochure with all the information you need to make an informed decision.

File Format: PDF

File Size: 16.1 MB

Pages: 6

Download Now
