Master Pin Pusher

Heavy Machinery Equipment

Medium Tracks

Model: [ HEPP-65/100/150 ]

Pioneer Mac portable track presses or ‘Master Pin Pusher’ series HEPP, make it possible to disassemble and reinstall track chains in the workshop or the field. Our 65ton model is the newest in our range, with a tie rod design. The Tie Rod design completely eliminates the risk of the Press coming away from the track being serviced. Our HEPP 65T is of super compact design, making it the ideal press for site-to-site service. Pioneer Mac offers a special range of Master Pin Pusher packages designed for numerous OEMs.

Master Pin Pusher for Medium Tracks

Why Choose Our Master Pin Pusher for Medium Tracks?

Engineered for professionals who demand reliability, efficiency, and precision in their heavy machinery maintenance operations.

Precision Engineering

Designed with precision components for accurate track pin removal and installation, ensuring optimal performance every time.

Built to Last

Constructed with high-grade materials and robust engineering to withstand the demands of heavy-duty industrial applications.

Efficient Operation

Streamlined design reduces operation time and effort, making field service and shop repairs faster and more efficient.

Specifications

Model Capacity (Ton) Stroke (mm) Working Pressure (kg/cm²) Approx Weight (Kg) Operation Universal Tooling Set (Included in Package) PIN DETAILS
Min. dia (mm) Max. dia (mm) Min. Length (mm) Max. Length (mm)
HEPP-65T/E 65 60 700 130 Dual Control (2-in-1) 6 Sets to cover 30.1mm up to 52.3mm in diameter 30.1 52.3 - -
HEPP-65T/M 65 60 700 130 Manual 6 Sets to cover 30.1mm up to 52.3mm in diameter 30.1 52.3 - -
HEPP-100 M 100 350 650 205 Hand pump 10 Sets to cover 19.3mm up to 60.2mm in diameter 19.3 60.2 160 320
HEPP-100 E 100 350 650 205 Electric pump (dual control pump 2 in 1) 10 Sets to cover 19.3mm up to 60.2mm in diameter 19.3 60.2 160 320
HEPP-150 M 150 350 650 480 Hand pump 12 Sets to cover 23.7mm up to 70mm in diameter 23.7 70 311 365
HEPP-150 E 150 350 650 480 Electric pump (dual control pump 2 in 1) 12 Sets to cover 23.7mm up to 70mm in diameter 23.7 70 311 365
icon

Product Description

Master Pin Pusher for Medium Tracks

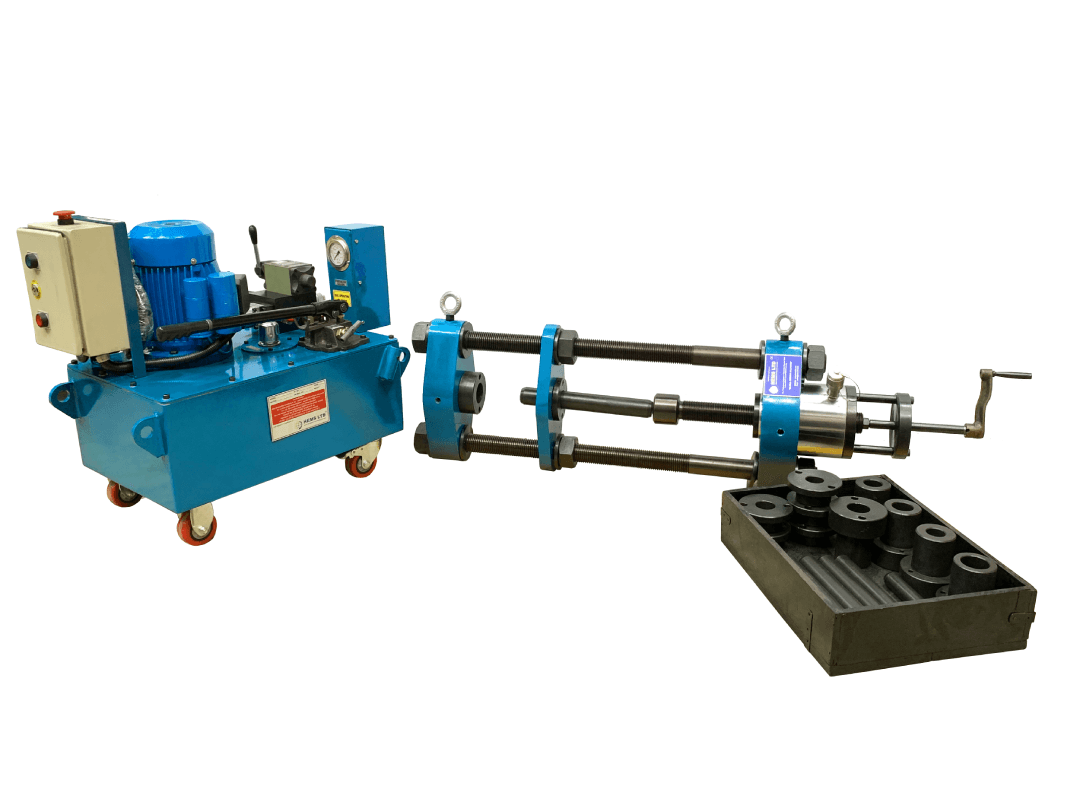

Medium Tracks [ HEPP-65 ]

Pioneer Mac portable track presses or ‘Master Pin Pusher’ series HEPP, make it possible to disassemble and reinstall track chains in the workshop or the field. Our 65ton model is the newest in our range, with a tie rod design. The Tie Rod design completely eliminates the risk of the Press coming away from the track being serviced. Our HEPP 65T is of super compact design, making it the ideal press for site-to-site service. Pioneer Mac offers a special range of Master Pin Pusher packages designed for numerous OEMs.

For more information and pricing please contact info@promacpioneer.com

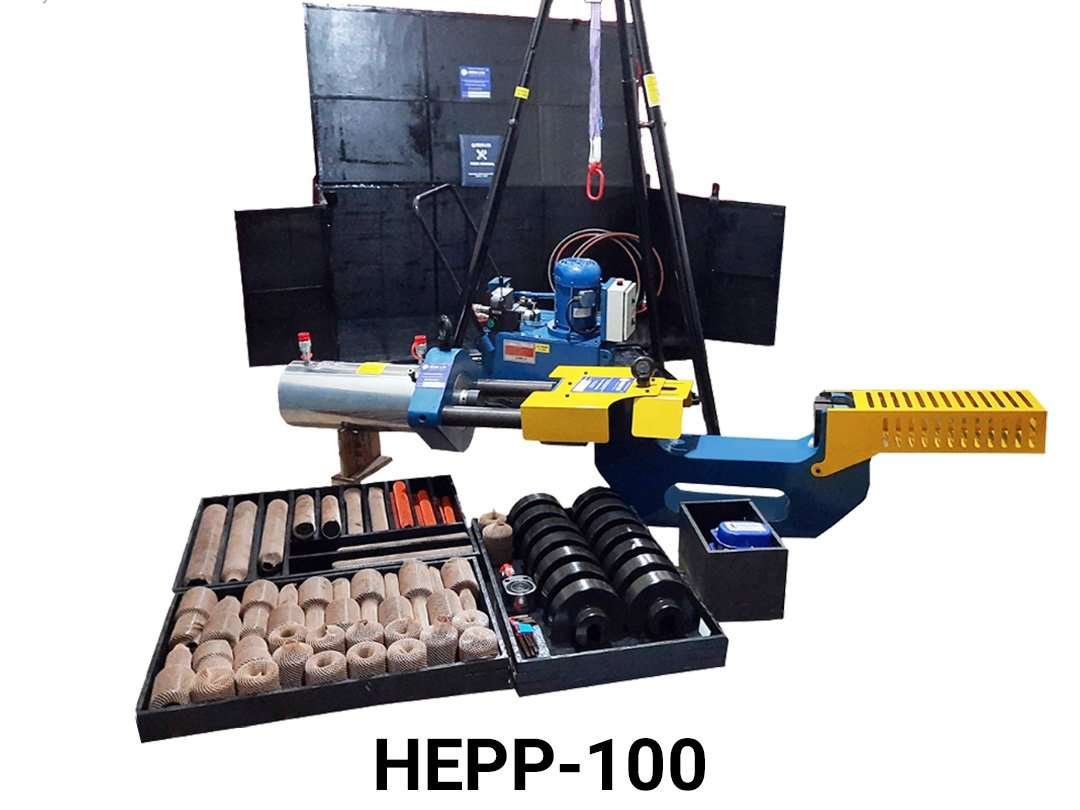

Medium Tracks [ HEPP-100 ]

Pioneer Mac HEPP 100ton Track Press is our most popular model and will service many tracked applications in our marketplace today. This model includes pin set and adaptor tooling to cover from 19.3 mm up to 60.2 mm in diameter and many more additional items.

A few examples of OEM applications for our 100ton Press:
CAT ALL MODELS UP TO CAT D10
VOLVO EC460 / EC700 / EC290 / EC210 / EC330 and more
JOHN DEERE 450LC / 693D / 330LC / 855 / 1155D / 1280 and more
KOMATSU D155 / D355 / D60 / D75 / PC700 / PC800 and more
HITACHI ZX350 / EX1100 / EX1200 and more

Master Pin Pusher for Medium Tracks
Master Pin Pusher for Medium Tracks

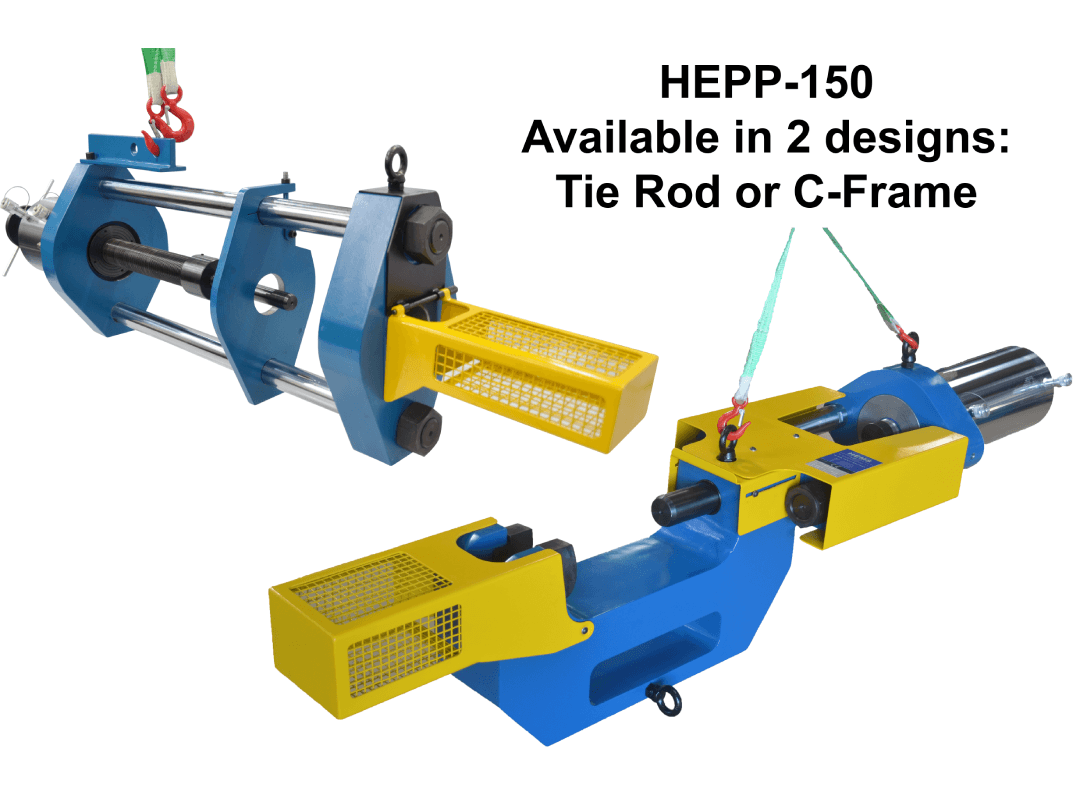

Medium Tracks [ HEPP-150 ]

Pioneer Mac HEPP 150ton Track Press is offered in 2 different design models; C-frame design or Tie Rod. The tie rod design makes it easier to service larger construction and mining equipment This model includes pin set and adaptor tooling to cover from 23.7 mm up to 70 mm in diameter and many more additional items.

A few examples of OEM applications for our 150ton Press:
CAT D10 / D11 and more
KOMATSU PC800 / D275 and more
HITACHI EX1800 and more

For more information and pricing please contact info@promacpioneer.com
