Lifting Jack

Heavy-Duty Support for Workshop & Field Applications

Lifting Jack

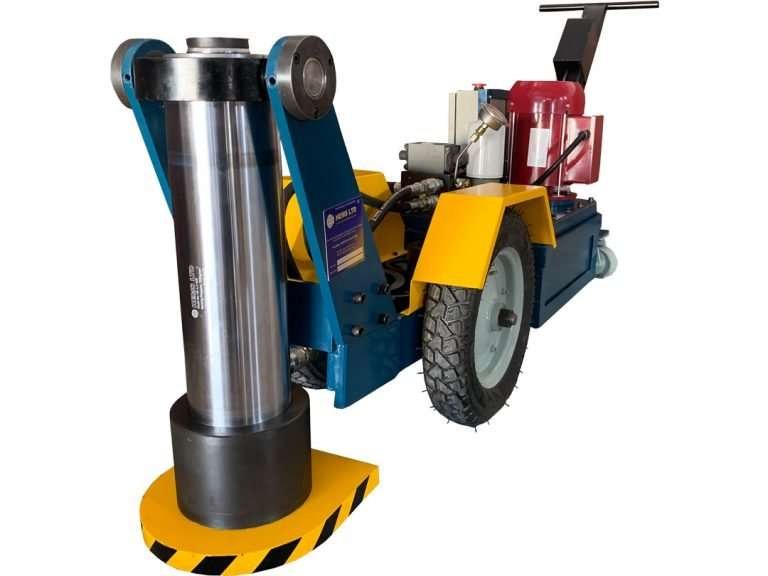

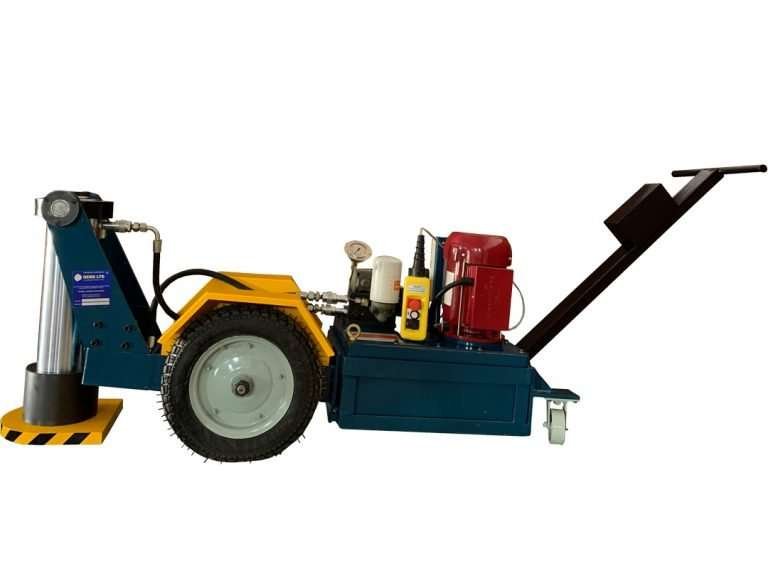

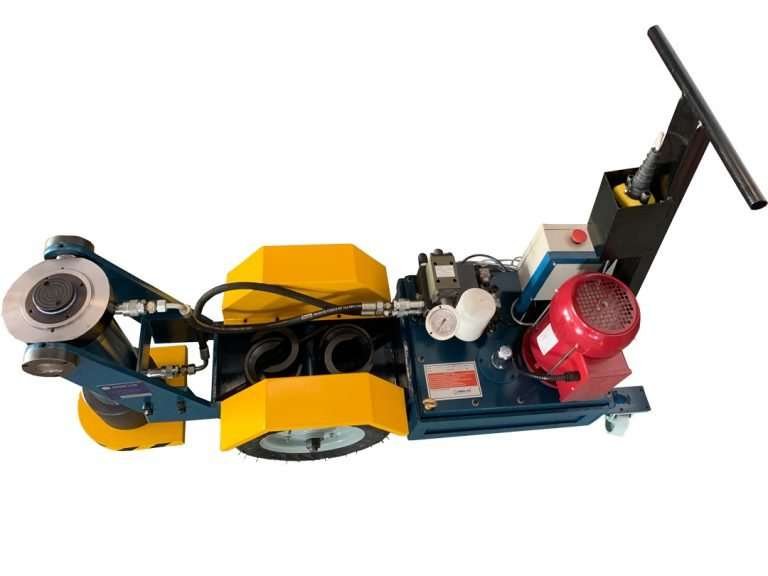

HEMS Portable Heavy-Duty 100ton Lifting Jack is a compact, portable lifting solution that can vertically bare up to 100tons! The combination of welded, steel, heavy duty chassis with it’s 3-inch ground clearance make it ideal for use in more inhospitable environments. Having only 3 controls (up, hold and down), it is incredibly simple to use while remaining the most effective heavy-duty jack on the market.

HEMS Lifting Jack comes with the standard electrical pump and has the option for pneumatic/ air operated pump. There are also additional accessories to increase stroke capacity, giving it flexibility across many machines/vehicles.

Lifting Jack
Lifting Jack
Lifting Jack
Lifting Jack
Lifting Jack

Why Use Our Lifting Jack?

Engineered for professionals who demand reliability, efficiency, and precision in their heavy machinery maintenance operations.

Safe Handling of Heavy Loads

Reduces the risks associated with manual lifting and supports a safer work environment.

Versatility Across Applications

Suitable for construction, mining, and material-handling equipment in both workshop and field repair situations.

Efficiency & Reliability

Speeds up maintenance tasks, minimizes downtime, and ensures dependable performance under heavy-duty conditions.

MODEL NUMBER CAPACITY STROKE (MM) MIN HEIGHT (MM) SADDLE DIAMETER MOTOR WEIGHT (KG) MAX HEIGHT USING OPTIONAL EXTENSION
STACKING PADS AND 'U' RINGS 190MM BRIDGE 490MM BRIDGE
HE-LJ60A350 60 350 560 87 Air 177.3 1145 710 350
HE-LJ60A680 60 680 890 87 Air 272.7 1475 1040 680
HE-LJ60E350 60 350 560 87 Electric 177.3 1145 710 350
HE-LJ60E680 60 680 890 87 Electric 272.7 1475 1040 680
HE-LJ100A400 100 400 600 106 Air 231.7 1007 750 400
HE-LJ100A680 100 680 900 106 Air 272.7 1307 1050 680
HE-LJ100E400 100 400 600 106 Electric 231.8 1007 750 400
HE-LJ100E680 100 680 900 106 Electric 272.7 1307 1050 680

Features/Applications

  • Compact and Portable, Steel Alloy Construction
  • Extension pieces / Bridges provided for additional reach
  • Electric / Pneumatic Motor – Optional
  • Manual / Remote Pendant Control valve – Optional
  • Suitable for lifting and maintenance of heavy earth moving Equipment, Dumpers, heavy structures and Locomotives
