Dual Action Press

Model: HEMS HE-DAP/65T

HEMS HE-DAP/65T is a portable hydraulic tooling used for safe removal and fitment of many types of pins and bushings. It can be used to press and pull both hydraulic pins and track pins, as well as master pins and bushes.

It is a unique combination of 2 reputable toolings into 1 unit, making for a effective, compact & portable solution to many areas of service. Our Dual Acting Press can press pins up to 52mmØ and pull pins up to 62mmØ. It comes with an option of Manual Hand Pump of Dual Control (2-in-1) pump.

Why Choose Our Dual Action Press?

Engineered for professionals who demand reliability, efficiency, and precision in their heavy machinery maintenance operations.

Precision Engineering

Designed with precision components for accurate track pin removal and installation, ensuring optimal performance every time.

Built to Last

Constructed with high-grade materials and robust engineering to withstand the demands of heavy-duty industrial applications.

Efficient Operation

Streamlined design reduces operation time and effort, making field service and shop repairs faster and more efficient.

Dual Action Press Specifications

MODEL NUMBER	CAPACITY (TON)	STROKE (MM)	WORKING PRESSURE (KG/CM²)	APPROX WEIGHT (KG)	OPERATION	TOOLING SETS (INCLUDED)		PIN DETAILS (MM)
MODEL NUMBER	CAPACITY (TON)	STROKE (MM)	WORKING PRESSURE (KG/CM²)	APPROX WEIGHT (KG)	OPERATION	PUSHING PINS	PULLING PINS	MIN Ø	MAX Ø

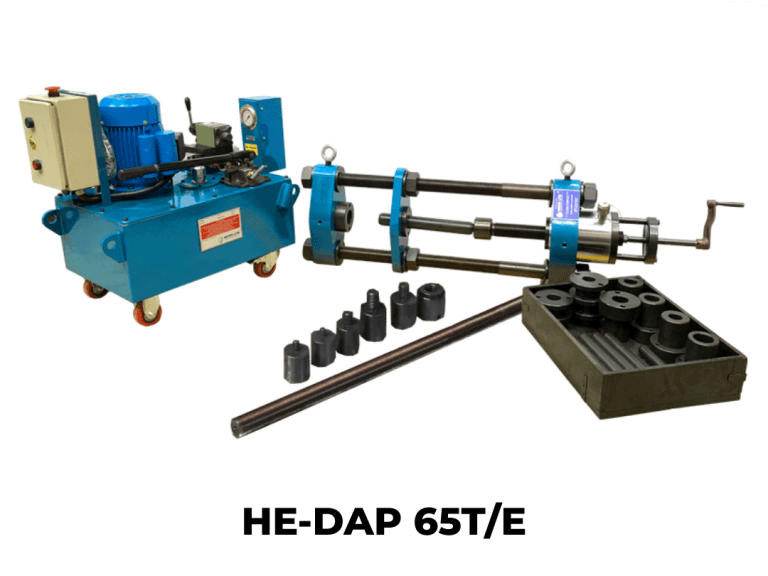

HE-DAP 65T/E	65	60	700	200	Dual Control Pump	6 sets covering 30.1mmØ – 52.3mmØ	Tooling set to pull pins up to 62mmØ	30.1	52.3
HE-DAP 65T/M	65	60	700	200	Manual Hand Pump	6 sets covering 30.1mmØ – 52.3mmØ	Tooling set to pull pins up to 62mmØ	30.1	52.3

Applications

Pressing track rollers and idlers into place.
Removing stubborn pins, bushings, and shafts.
General heavy equipment maintenance where high force is required.
