Master Pin Pusher

Heavy Machinery Equipment

Large Tracks

Model: [ HEPP-200/230/300 ]

Pioneer Mac HEPP 200ton Press is suitable for larger tracked applications. It is also ideal for medium sized tracks that have particularly weathered pins.This model includes pin set and adaptor tooling to cover from 22 mm up to 76.2 mm in diameter and many more additional items.

Master Pin Pusher for Large Tracks

Why Choose Our Master Pin Pusher for Large Tracks?

Engineered for professionals who demand reliability, efficiency, and precision in their heavy machinery maintenance operations.

Precision Engineering

Designed with precision components for accurate track pin removal and installation, ensuring optimal performance every time.

Built to Last

Constructed with high-grade materials and robust engineering to withstand the demands of heavy-duty industrial applications.

Efficient Operation

Streamlined design reduces operation time and effort, making field service and shop repairs faster and more efficient.

Specifications

Model Capacity (Ton) Stroke (mm) Working Pressure (kg/cm²) Approx Weight (Kg) Operation Universal Tooling Set (Included in Package) PIN DETAILS
Min. dia (mm) Max. dia (mm) Min. Length (mm) Max. Length (mm)
HEPP-200 M 200 350 650 630 Hand pump 15 Sets to cover 19.3mm up to 76.2mm in diameter 19.3 76.2 311 415
HEPP-200 E 200 350 650 630 Electric pump 15 Sets to cover 19.3mm up to 76.2mm in diameter 19.3 76.2 311 415
HEPP-230 E 230 350 650 680 Electric pump 7 Sets to cover 22mm up to 85mm in diameter 22 85 360 425
HEPP-250 E 250 350 650 810 Electric pump 7 Sets to cover 22mm up to 85mm in diameter 22 85 360 425
HEPP-300 E 300 600 664 1420 Electric pump 15 Sets to cover 36.4mm up to 85mm in diameter 36.4 85 360 425
HEPP-400 E 400 500 660 1480 Electric pump 16 Sets to cover 60mm up to 105.2mm in diameter 60 105.2 400 400
icon

Product Description

Master Pin Pusher for Large Tracks

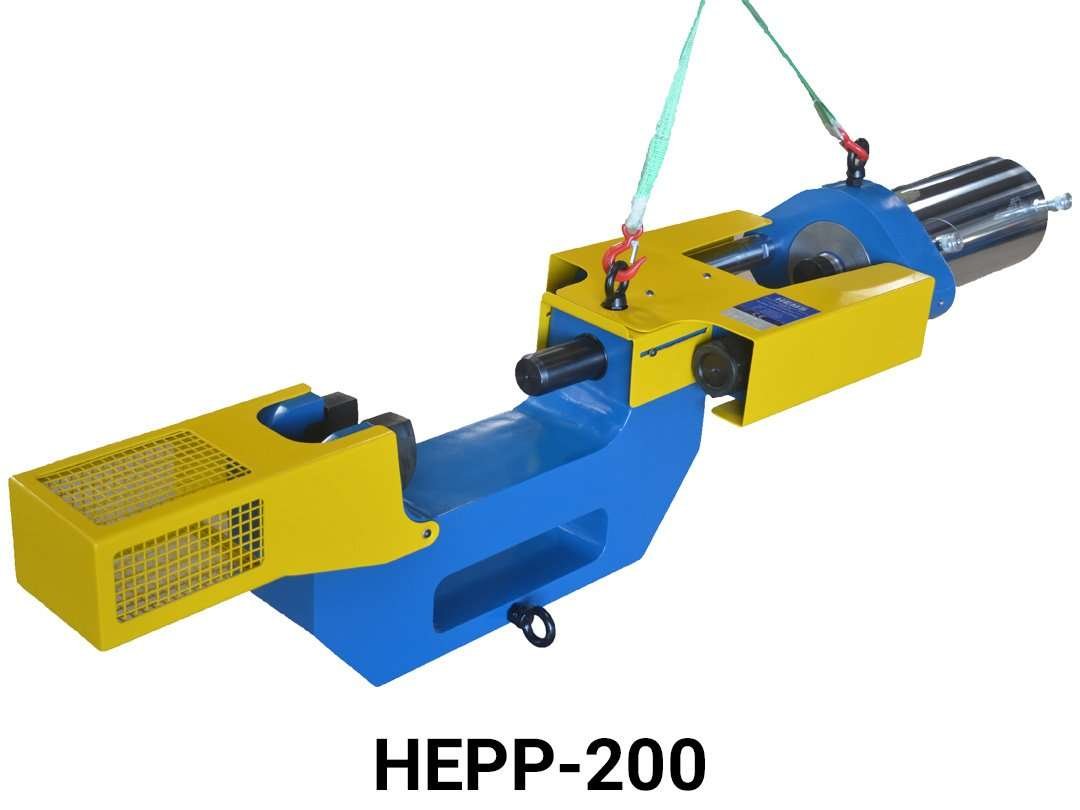

Large Tracks [ HEPP-200 ]

Pioneer Mac HEPP 200ton Press is suitable for larger tracked applications. It is also ideal for medium sized tracks that have particularly weathered pins.This model includes pin set and adaptor tooling to cover from 22 mm up to 76.2 mm in diameter and many more additional items.

A few examples of OEM applications for our 200ton Press:
CAT D10 / D11 and more
KOMATSU PC800 / D275 and more
HITACHI EX1800 / EX1900 and more

For more information and pricing please contact info@promacpioneer.com

Large Tracks [ HEPP-230 ]

Pioneer Mac HEPP 230ton Press is also suitable for larger tracked applications, but covers a wider range of pin diameter. This model includes pin set and adaptor tooling to cover from 22 mm up to 85 mm in diameter and many more additional items.

A few examples of OEM applications for our 230ton Press:
CAT D10 / D11 and more
KOMATSU PC800 / D275 and more
HITACHI EX1800 / EX1900 and more

Master Pin Pusher for Large Tracks
Master Pin Pusher for Large Tracks

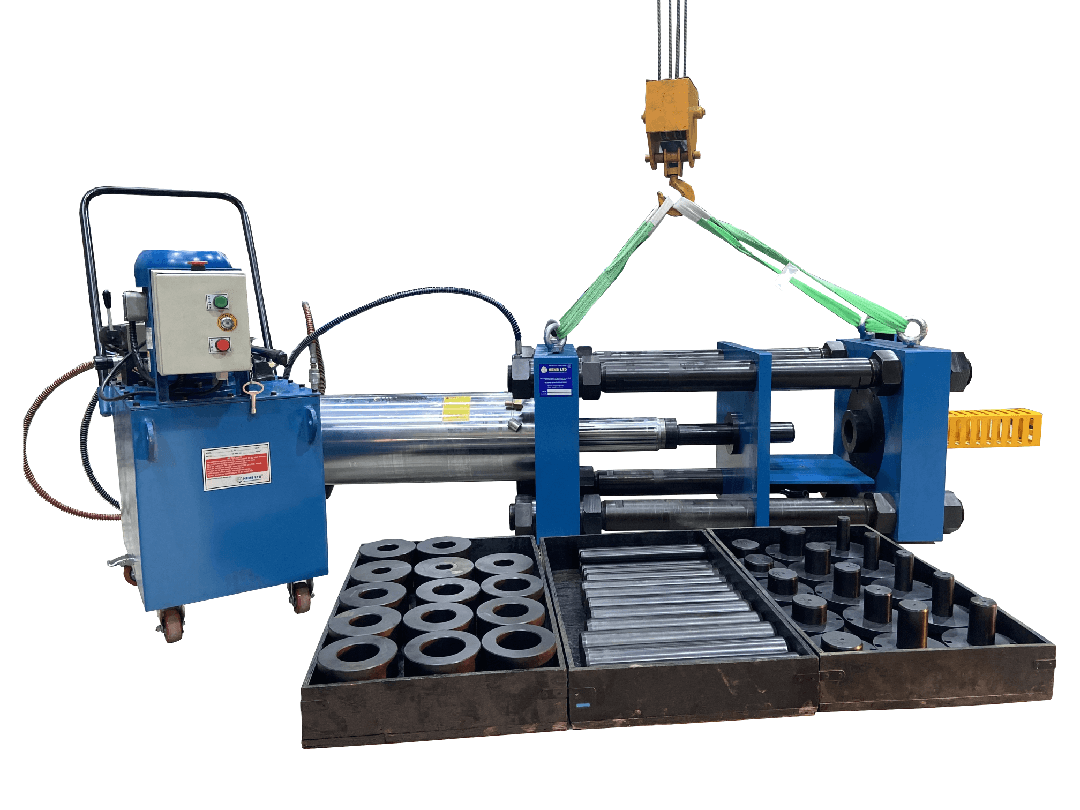

Large Tracks [ HEPP-300 ]

Pioneer Mac HEPP 300ton Press is also suitable for larger tracked applications, but covers a wider range of pin diameter. The additional tonnage grants the ability to remove damaged pins. This model includes pin set and adaptor tooling to cover from 22 mm up to 85 mm in diameter and many more additional items.

A few examples of OEM applications for our 300ton Press:
CAT 6010 / 6020B and more

For more information and pricing please contact info@promacpioneer.com
