Models: HEM-UC/7500 & HEM-UC/8500

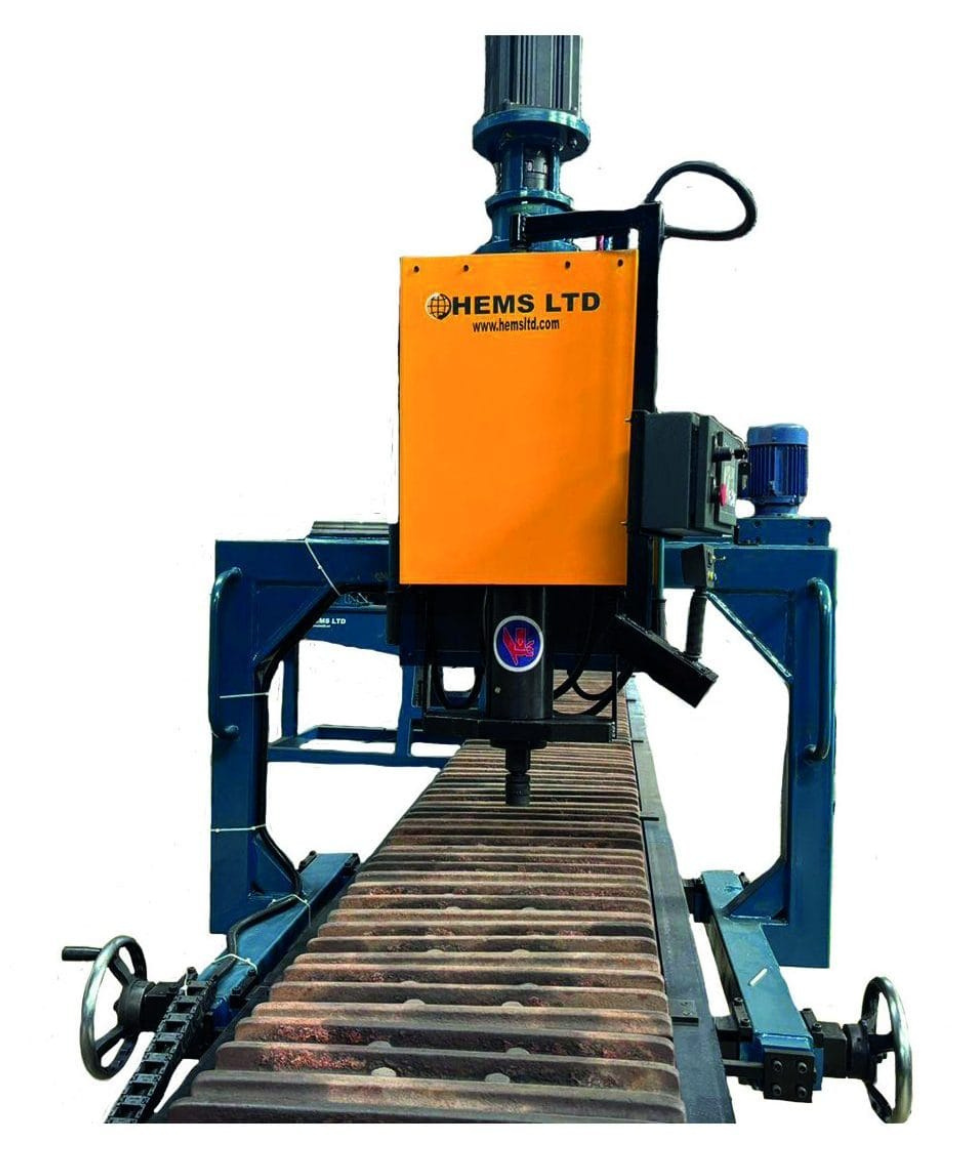

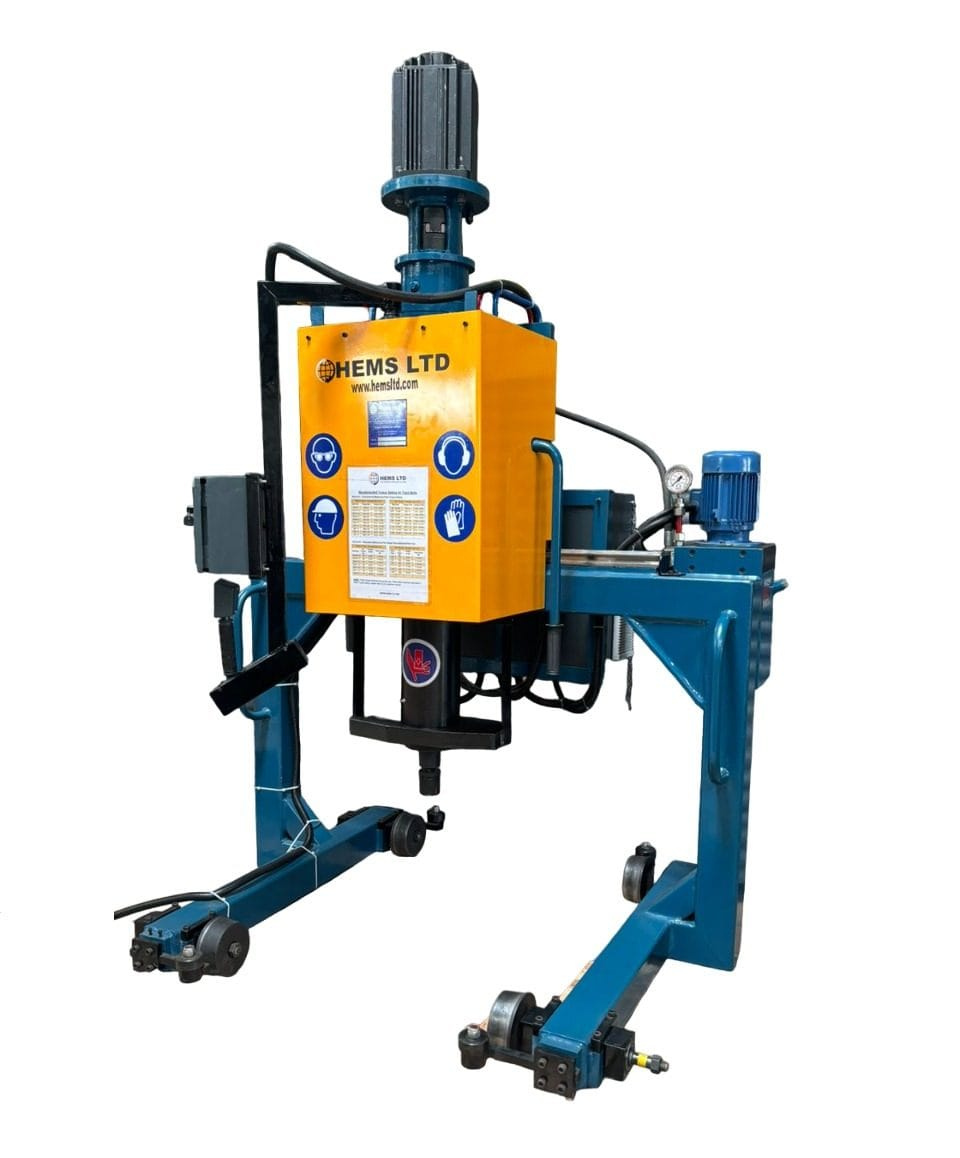

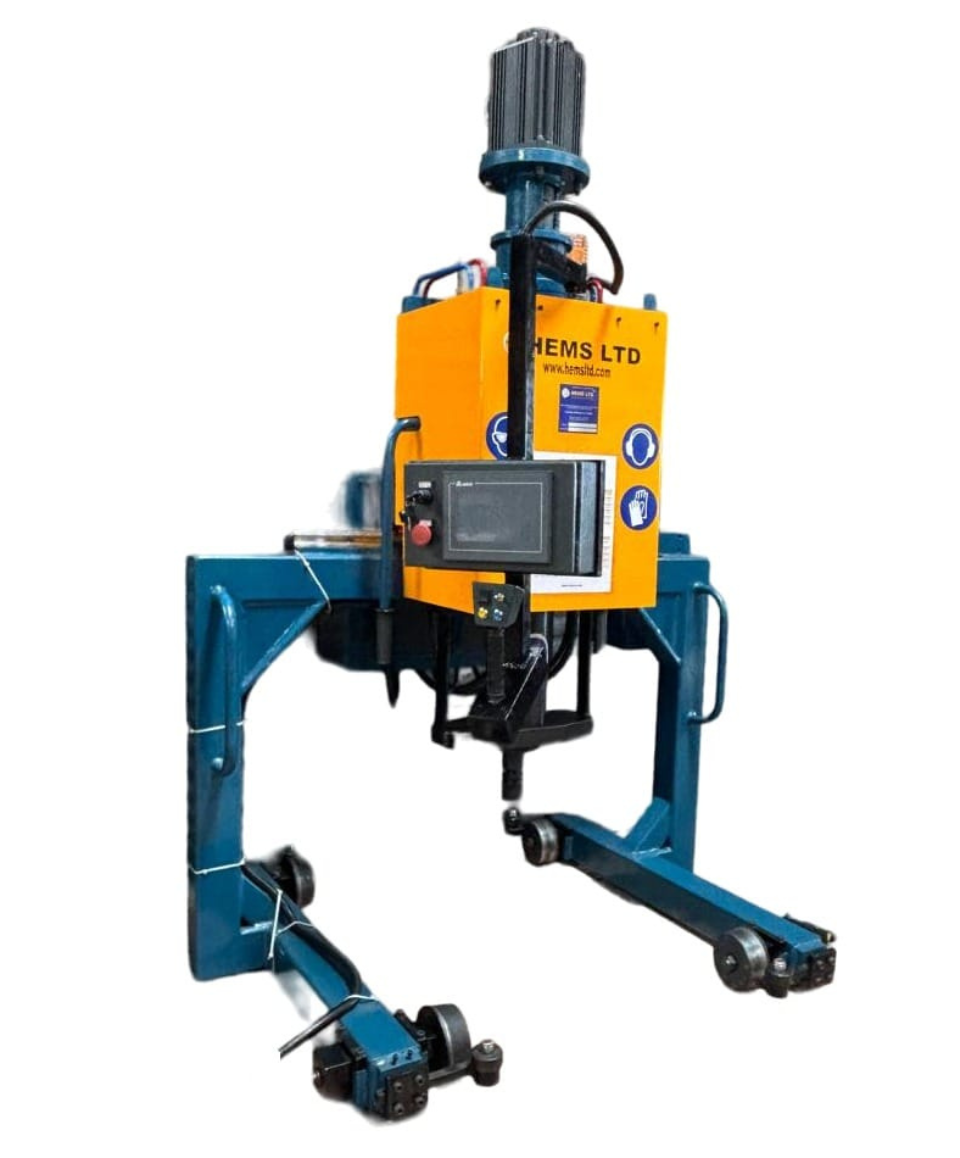

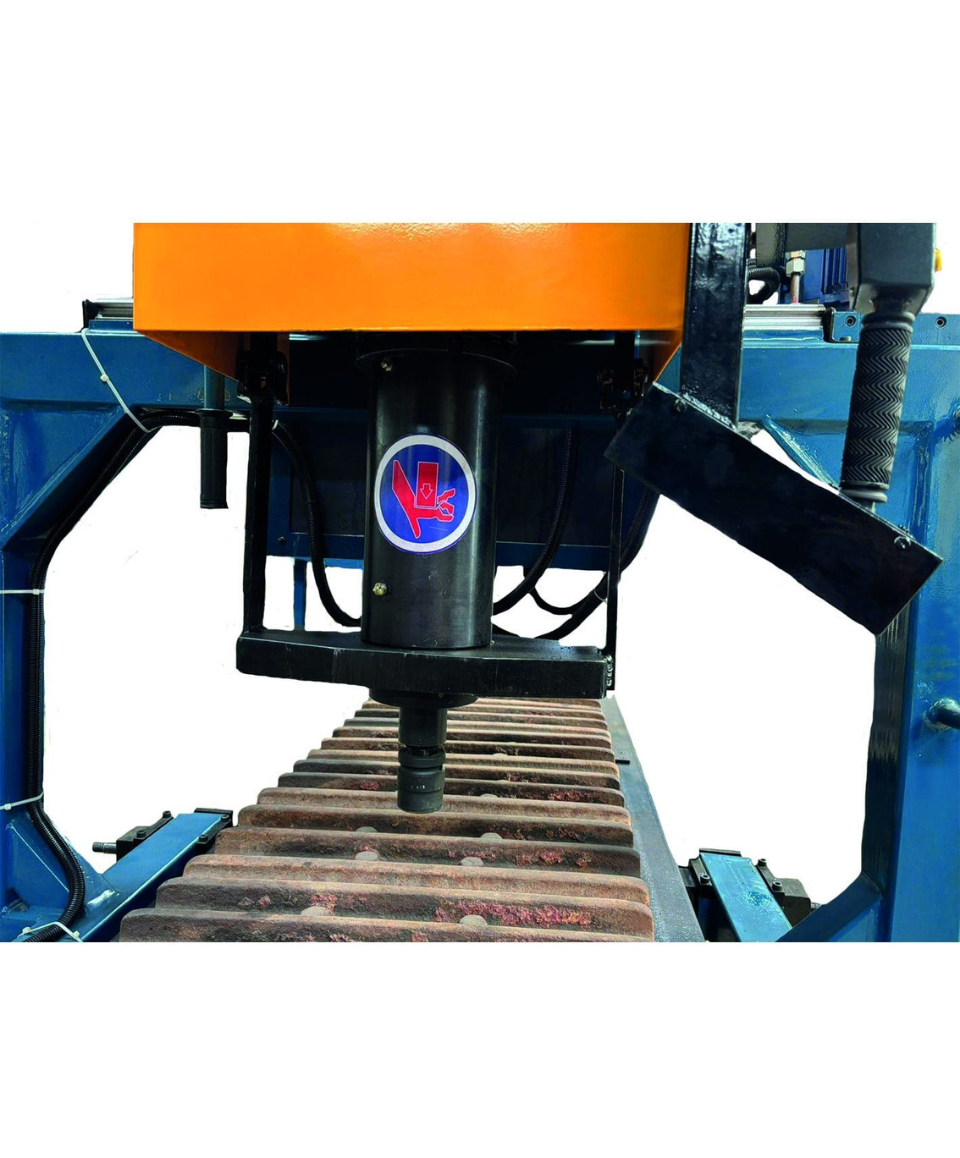

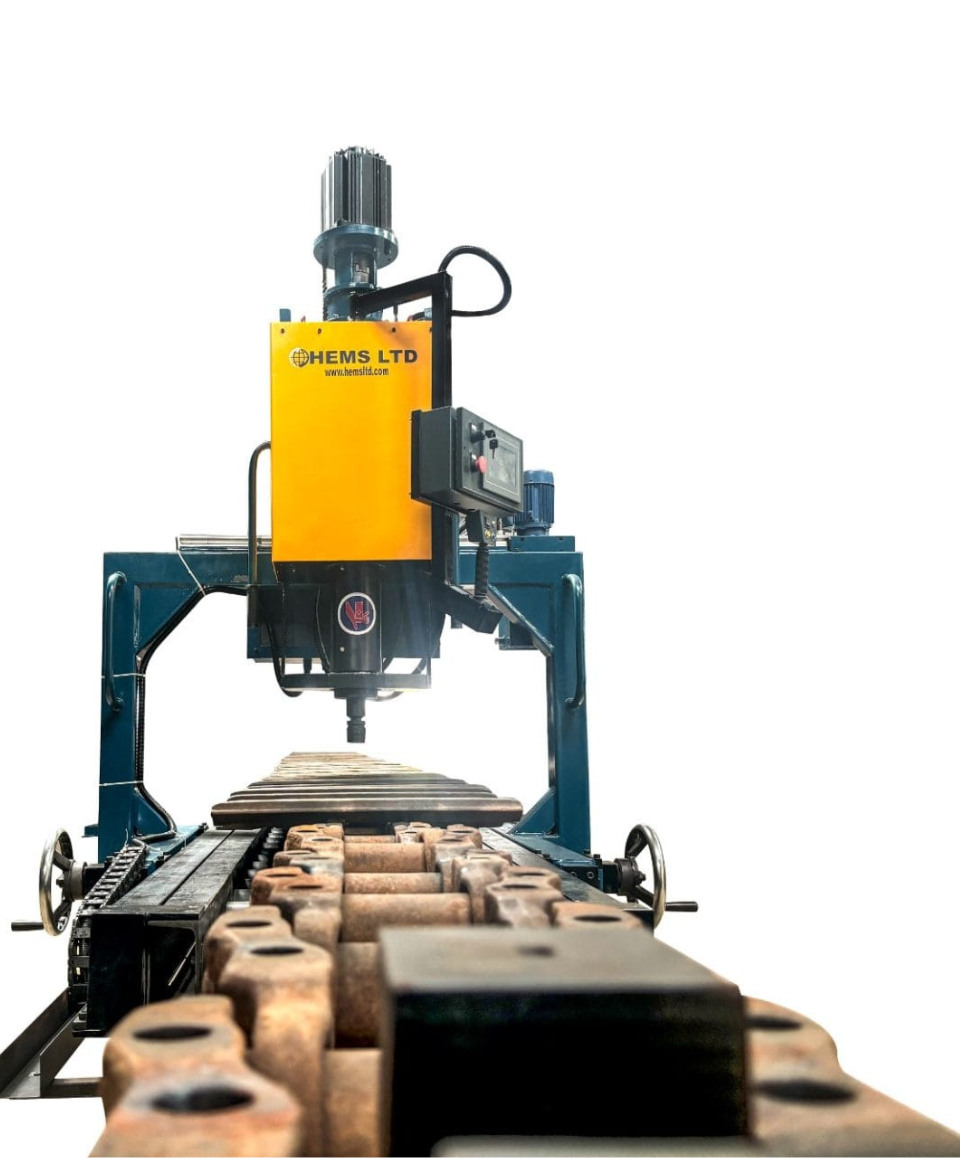

HEMS Hydraulic Torque Wrench series are designed for the removal and tightening of shoe bolts of most of the small, medium and large sizes of Track Chains. The wrench has two speeds, one for low speed and high torque for the initial removal or final tightening of the bolts and high speed and low torque for quick removal of the bolt or initial screwing of the bolt during tightening.
Hems also supply both options, manual and electrically driven conveyors. Please check at the time of order which option suits your requirements.
Engineered for professionals who demand reliability, efficiency, and precision in their heavy machinery maintenance operations.
Designed with precision components for accurate track pin removal and installation, ensuring optimal performance every time.
Constructed with high-grade materials and robust engineering to withstand the demands of heavy-duty industrial applications.
Streamlined design reduces operation time and effort, making field service and shop repairs faster and more efficient.
| Description | HEM-UC/7500 | HEM-UC/8500 |
|---|---|---|
| Max Torque | 7,500 Nm | 8,500 Nm |
| Spindle Speed (Low Torque) | 10 rpm | |
| Spindle Speed (High Torque) | 25 rpm | |
| Electric Motor | 5 HP, 3 phase | 6 HP, 3 phase |
| Torque Operation | Electric / Joystick | |
| Torque Setting | Programmable | |
| Hydraulic Powerpack | 200 bar / 1 HP | |
