Extend Oil Life • Protect Your Machinery
HE-MF-15

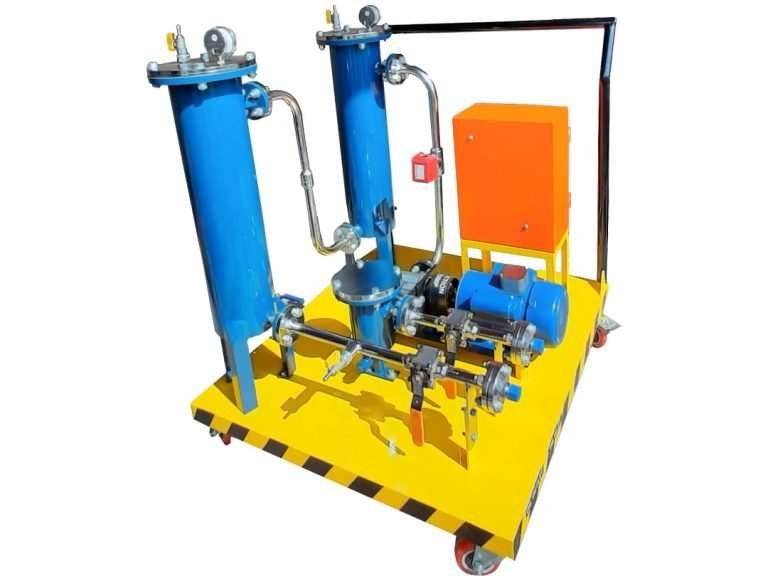

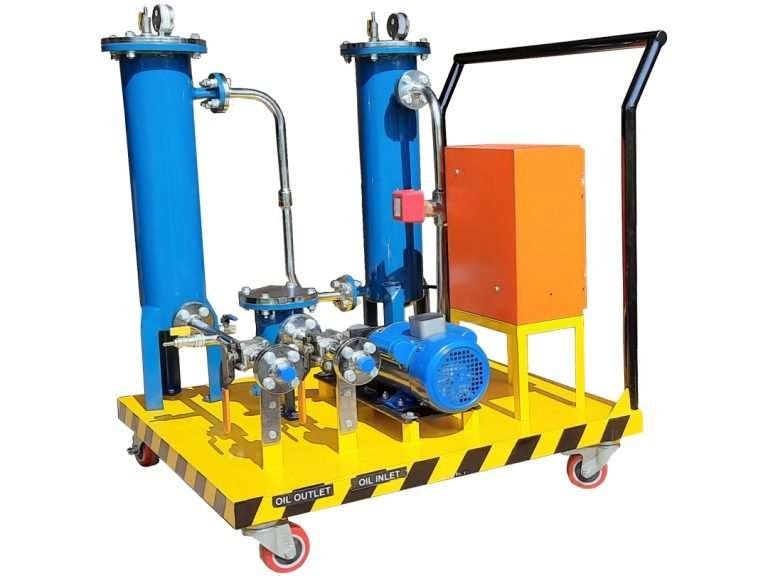

HEMS Oil Filtration unit model HE-MF-15 is used for fine solid particle removal while our model HE-MF-20 works for solid and moisture removal. The Oil Filtration unit is fixed to a portable trolley and can filter industrial oils of almost any cleanliness- from NAS 4 up to NAS 99!
OEM’s recommend changing oil every 5,000 hours. Some users opt to change even more frequently than this, but still face issues. This can have a serious impact on daily operation; however, if your used oil is filtered every 1,500 hours it would not need replacing! Using HEMS Oil Filtration units will keep oil clean, dry and free of precursors for oxidation!
HE-MF-15
| Model | HE-MF-15 |
| Pump/Flow | Gear type mono block pump 30l/min |
| Max operating pressure | 0-15 bar |
| Hoses | Flexible hoses 3m long suction and outlet hoses |
| Viscosity | Hydraulic & Lube Oil (up to 100 cSt) |
| Working temperature | 0°C min up to 40°C max |
| Particle analyzer | Portable particle counter (to be ordered separately) |
HE-MF-20
| Model | HE-MF-20 |
| Pump/Flow | Gear pump 40l/min |
| Max operating pressure | 10 bar |
| Inlet filter | 149 micron (SS mesh type) washable filter |
| Pre-heating of oil | 6kW indirect filter-type-low watt density heater |
| Filtration capacity | NAS 4.5 cleanliness class |
| Particle analyzer | Portable particle counter (to be ordered separately) |
