HCS-30

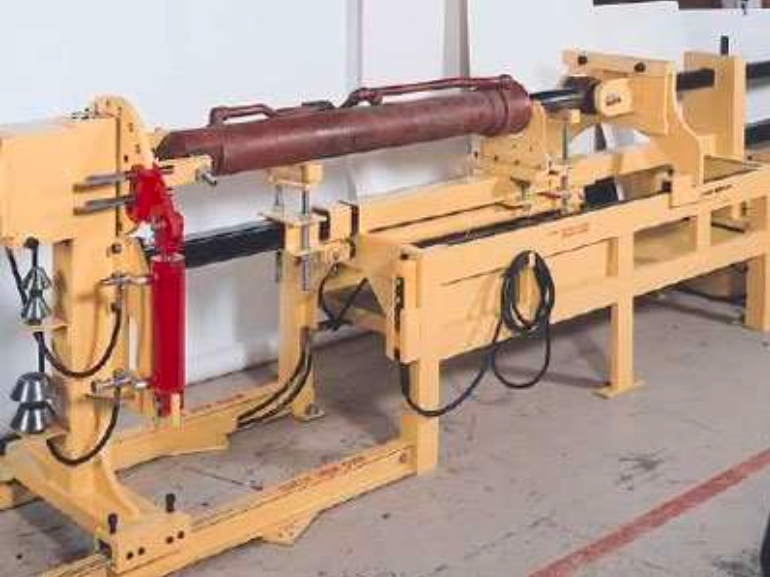

The Tuxco Model HCS-30 Hydraulic Cylinder Servicer includes a double acting torquer cylinder as well as our built-in, high speed hydraulic nut runner to make hydraulic cylinder repair jobs faster, easier, and safer than ever before. This model provides a technician with all of the tools that he needs to quickly repair tough and hard to handle hydraulic cylinders. All of the functions of the HCS-30 are powered by a 5 HP, 3 Phase hydraulic power supply.
Low voltage solenoid valves are activated by a six push button pendant control, which allows the operator to position himself in various positions around the servicer at his discretion. At the push of a button, a single operator can generate up to 30,000 lb-ft (4149 kg-m) of torque to loosen threaded glands and piston retaining nuts. Our built-in High Speed Hydraulic Nut Runner then provides 5,000 lb-ft (690 kg-m) of torque at 8 RPM to quickly remove the loosened gland or nut.
The HCS-30 is available certified CE.
Specifications
| Tuxco Model | HCS-30 |
|---|---|
| Torque Capacity lb.ft (kg-m) | 30,000 (4149) |
| Single / Double Acting Torquer | DOUBLE |
| Max Capacity Cylinder Length (m) | 19 ft. (5.8) |
| Max Capacity Cylinder Diameter (mm) | 16 in. (406.4) |
| Max. Req. Floor Space | 26′ x 3′ with 9′ of air space on one end |
| Power Required | ALL VOLTAGE 50/60Hz 3 Ph |
| Horse Power | 5 HP |
| Nut Runner Torque | 5,000 lb.ft. |
| Nut Runner Speed Wrench | 8 RPM |
| Built-In Spanner | YES |
| Access Required | FRONT |
| Torquer Stroke Speed | 10″ STROKE 14 Sec./Ft. |
| Rod Extraction Installation Speed | 48″ STROKE 5.2 Sec./Ft. |
| Pendent Control | YES |
| Extraction Force (kN) | 14,000 lbs. (62.3) |
