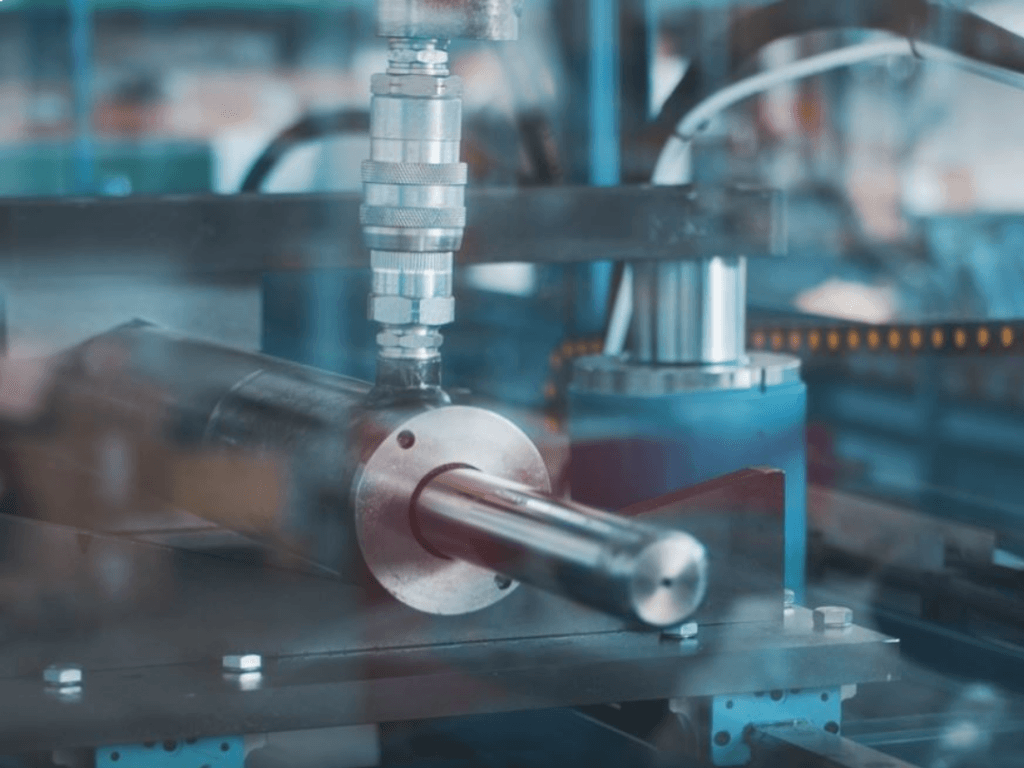

The HE-ADCT testing machines are Automated digital cylinder testers Made in compliance with International ISO 10100:2020 standards. You can wash the cylinders with Clean oil and have the possibility to Control the oil contamination level in Compliance with ISO4406.These Machines also have semi-automatic And manual modes.

Automatic Testers
Automatic Testers
Automatic Testers
Automatic Testers

HE-ADCT-01

  • All data validation or not validation are listed on a report including the lot management
  • USB interface for program backup to unload the test reports
  • Contamination level is detected in real time / Contamination sensor PARKER ICount PD
  • Complete safety closure via sliding tunnels
  • Regular internal cleaning of the tank, eliminating the residues of contaminated material
  • Heat exchanger to always keep the oil inside the tank cool

HE-ADCT-02

  • All data validation or not validation are listed on a report including the lot management
  • USB interface for program backup to unload the test reports

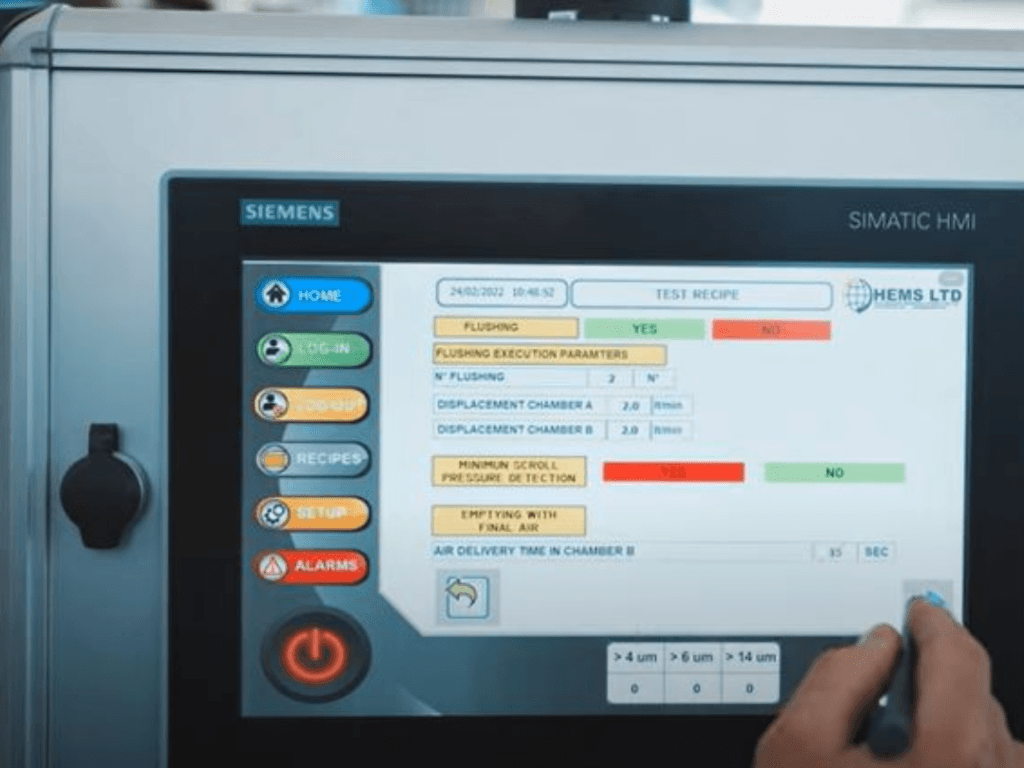

  • Controlled and reported flushing
  • Pressure lost record in both stations
  • Minimum sliding pressure record with oil non-energized seal
  • Internal seal leak test
  • Selectable long cycles
  • Monitoring temperature in the tank
  • Contamination level is detected in real time / Contamination sensor PARKER ICount PD

Specifications

MODEL TANK CAPACITY MAX TESTING PRESSURE CYLINDER SPECIFICATION MACHINE WEIGHT MAX CYLINDER WEIGHT PNEUMATIC FEEDING SYSTEM PRESSURE MIN/MAX INTERNAL TANK CAPACITY MAXIMUM FLUID TEMPERATURE
HE-ADCT-01 400 litre 450 bar 5000mm extended length / 500mm diameter 1,200Kg (empty) 600kg 6/9 bar 200 lt 50
HE-ADCT-02 650 litre 415 bar 10,000mm extended length / 600mm diameter 2,000Kg (empty) 15 q 8/10 bar 500 lt 50
